Single Scissor Lift Table 440 lbs. 39.4 " lifting height with durable big rubber load wheel

Single Scissor Lift Table 440 lbs. 39.4 " lifting height with durable big rubber load wheel

$295.00
$295.00 $660.00
Shipping calculated at checkout.

Out of stock

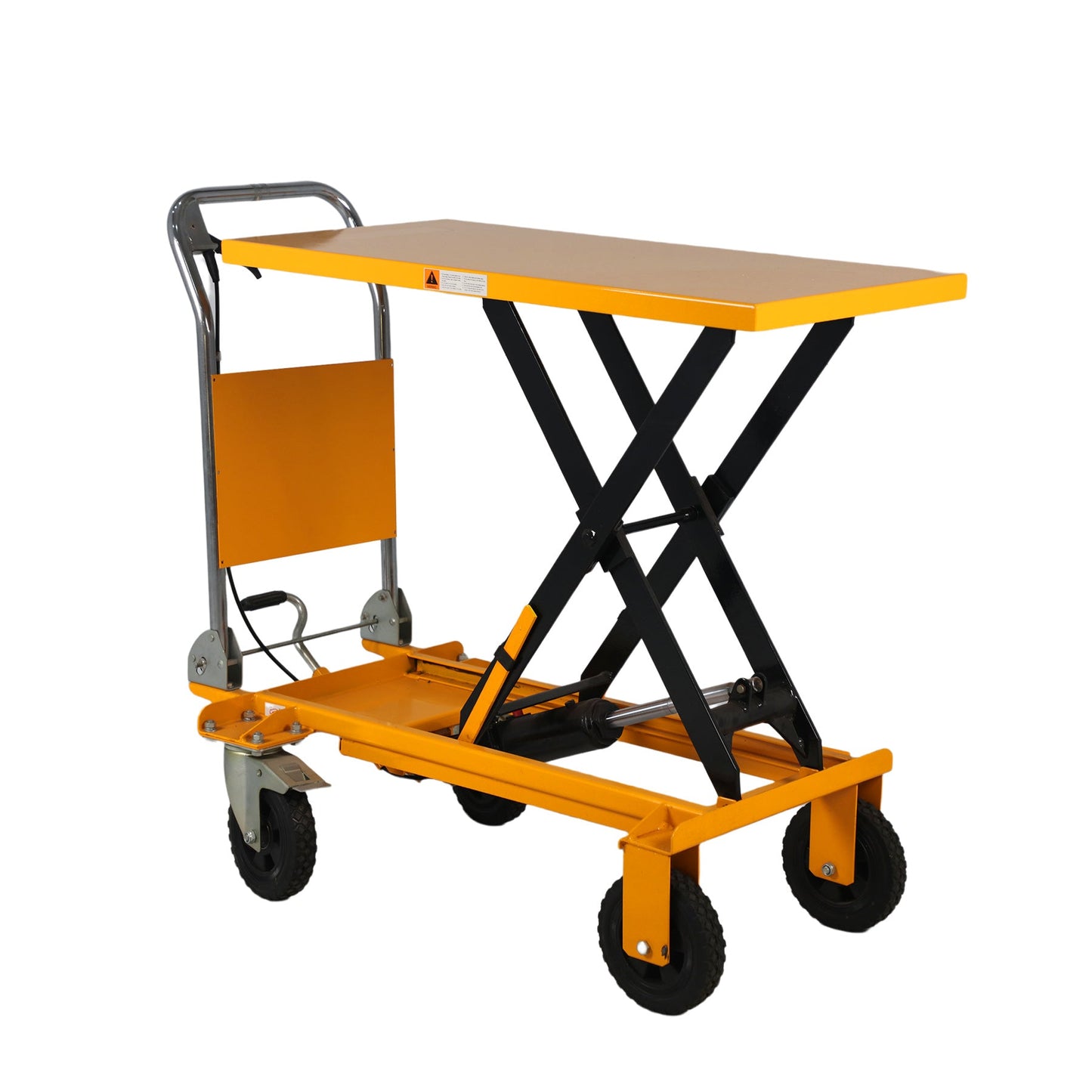

MOBILE LIFT TABLE WITH SUPER BIG WHEELS

  • Foot pump hydraulically raises platform.
  • Overload valve protects pump and operator.

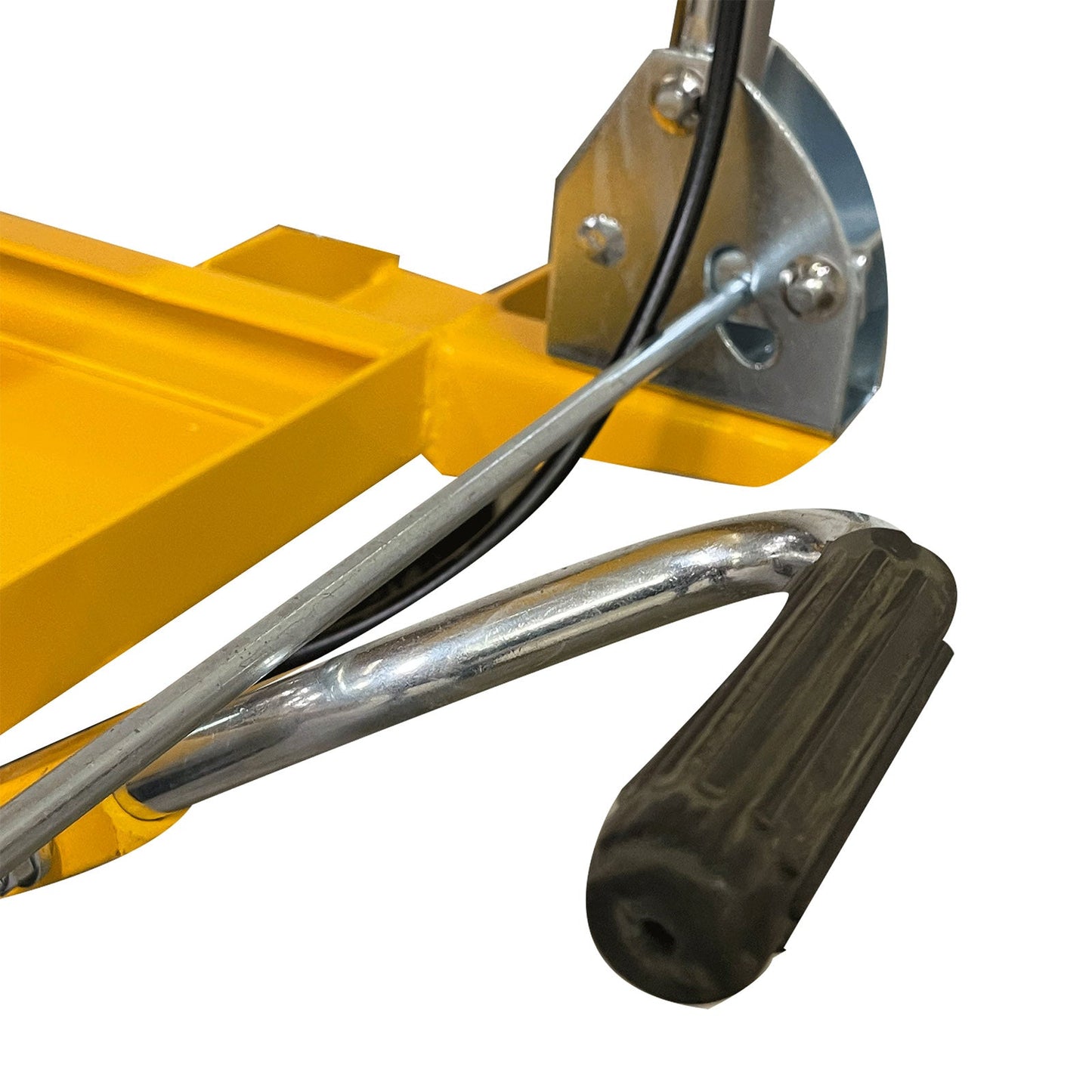

  • Easy-release lever to lower.
  • Rubber casters: 2 swivel with brake, 2 rigid.

* DOUBLE SCISSOR LIFT TABLES

MODEL NO. PLATFORM L*W CAPACITY HEIGHT LOWERED HEIGHT RAISED  HEIGHT EXTENDED WT (LBS) PRICE EACH
A-2003 27*18" 330 lbs 11.9'' 43'' 31.4" 141 $395
A-2007 36*20'' 770 lbs 13.8'' 51'' 37.4'' 223 $595
A-2010 48*24'' 1760 lbs 18.7'' 59'' 40.3'' 379 $895

 *SINGLE SCISSOR LIFT TABLES

MODEL NO. PLATFORM L*W CAPACITY HEIGHT LOWERED HEIGHT RAISED HEIGHT EXTENDED WT (LBS) PRICE EACH
A-2016 27*18" 330 lbs 8.8'' 29'' 20.2'' 92 $165
A-2001 32*20'' 660 lbs  11'' 35.4'' 24.4'' 165 $235
A-2002 32*20'' 1100 lbs 11'' 35.4'' 24.4'' 187 $285
A-2005 40*20'' 1760 lbs 16.5'' 39.5'' 22.9'' 254 $375
A-2013 39.4x19.7'' 440 lbs 13'' 26.4'' 39.4'' 156 $295
A-2015 48x24'' 3300 lbs 16.5'' 39.4'' 22.8'' 371 $445
A-2014 40x20'' 2200 lbs 15'' 39.4'' 24.4'' 325 $405

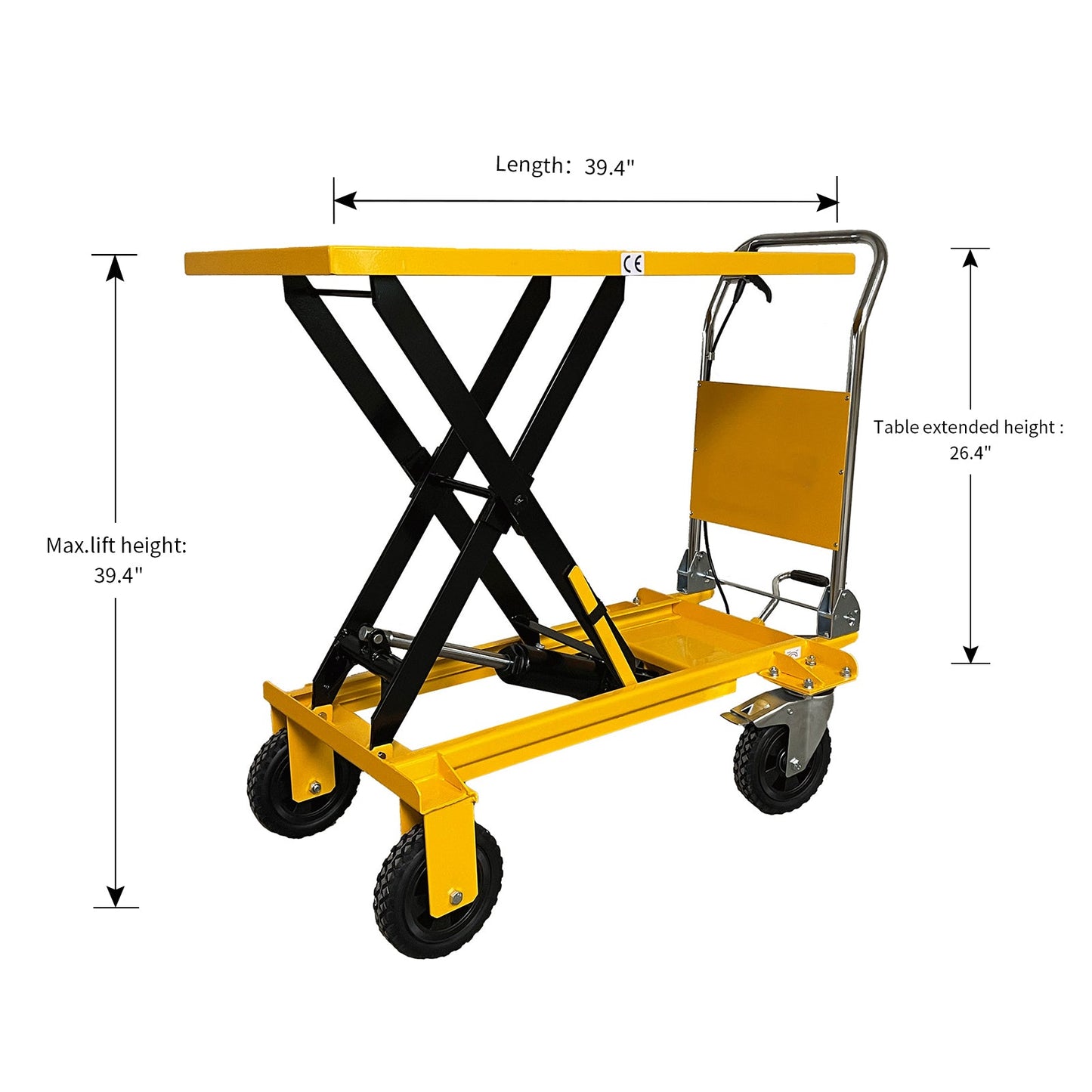

DIMENSIONS:

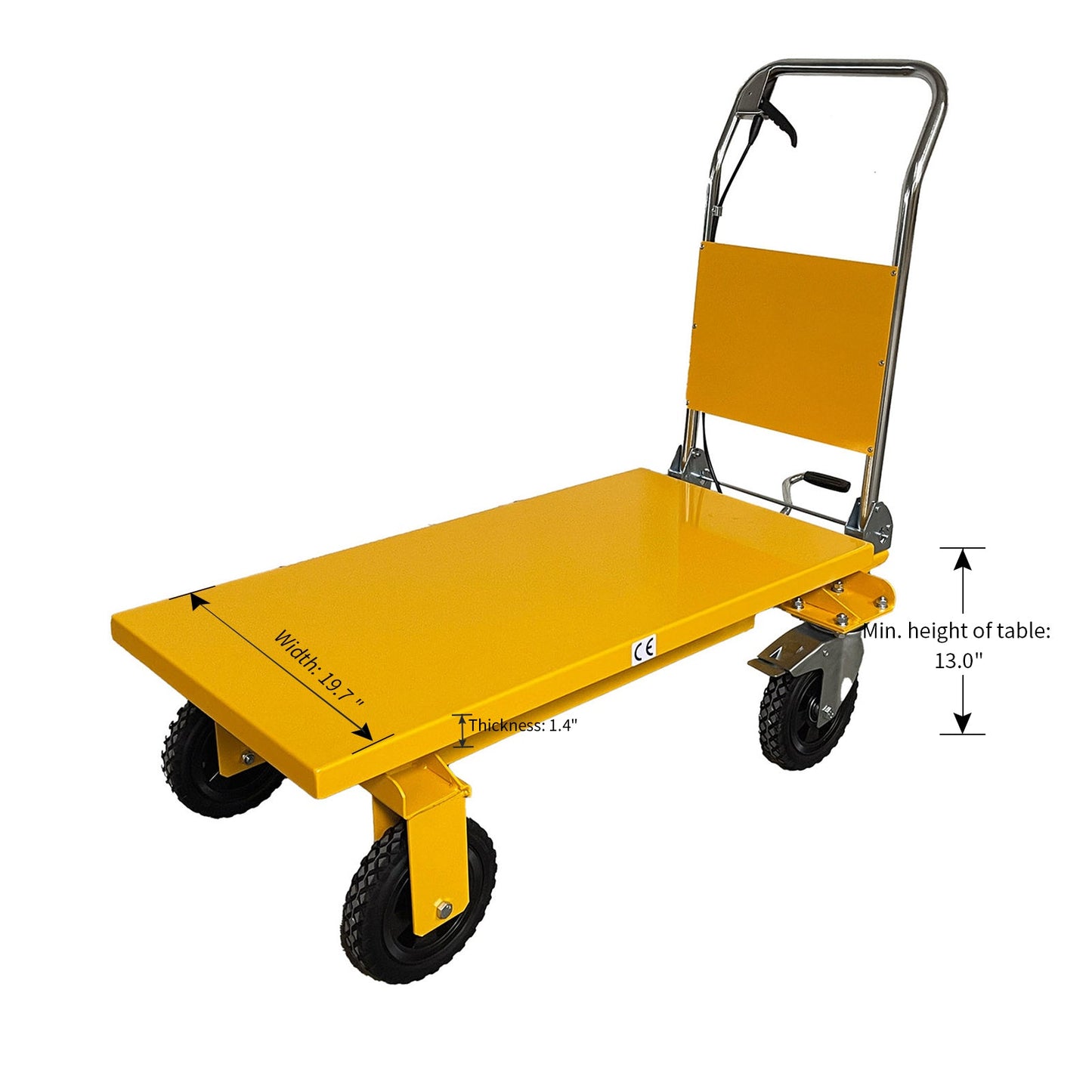

  • Platform (Actual): 39.4x19.7x1.4" (L x W x Thickness)
  • Handle Upright height: 41.5''
  • Max.lifting height: 39.4''
  • Table lowered height: 13"
  • Wheel size: 7.8''(diameter)
  • Table Material: Steel
  • Frame Material: Steel
  • Brake Type: Foot brake
  • Lift Control: Foot Pump
  • Lift Mechanism: Hydraulic
  • Yellow & black components are powder coated.


FEATURES:

  • Number of Pumps to Reach Full Height: ≤25
  • Handle can be folded down
  • Handle plate provides protection from falling items.

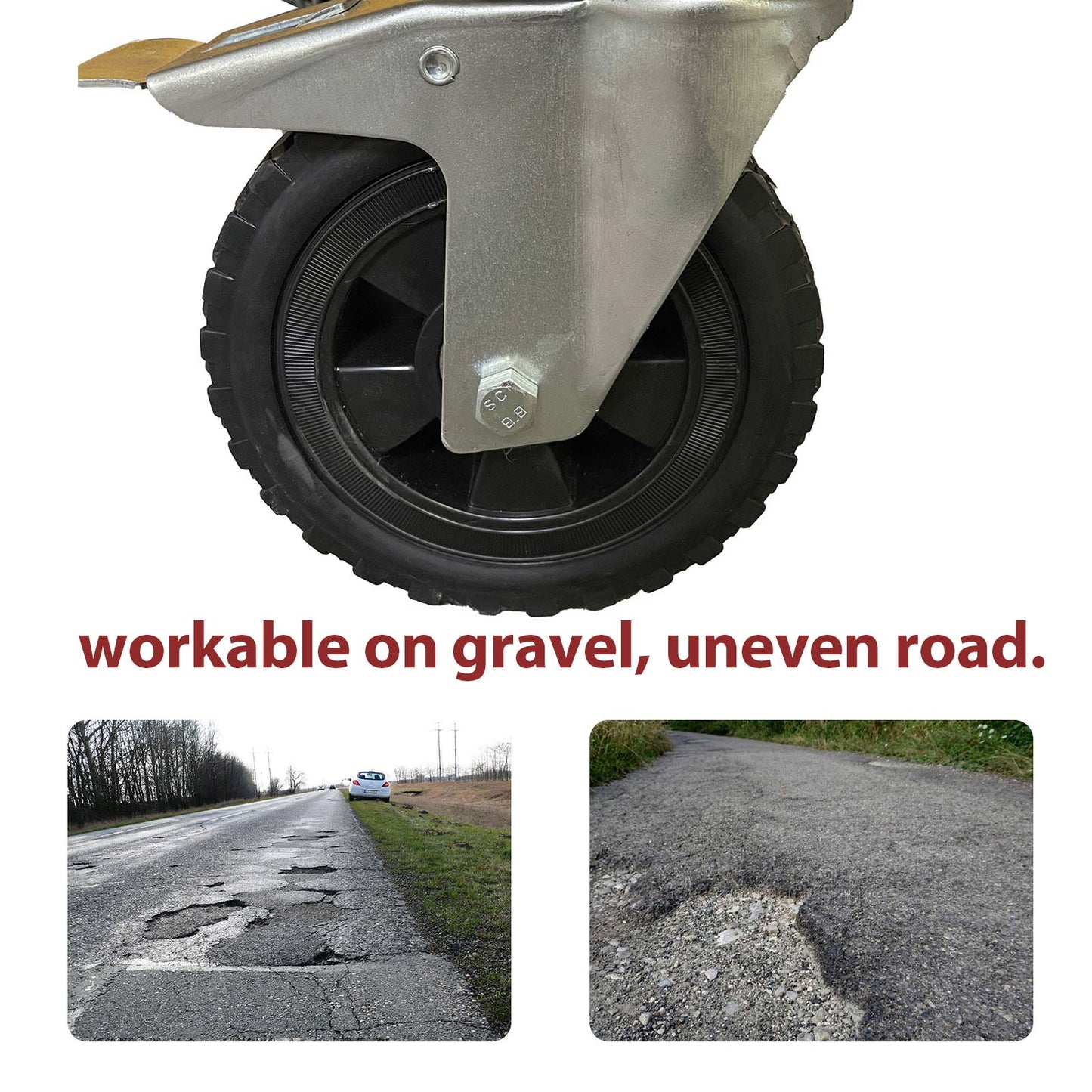

  • Super big wheels keep the lift table go through the rough floor easily.
  • Rubber material wheels can be used outdoors.

PRODUCT DETAILS

  • MOVES MORE SAFELY IN LESS TIME: Use with the Snap-Loc Dolly System to extend height of our Push Bars and Panel Bars for easier moving of taller cargo items.
  • HEAVY DUTY BUILT TO LAST: Thick heavy duty 1-1/4 in industrial grade steel with powder coated finish impervious to contaminants/weather. Steel connectors are scratch/corrosion resistant zinc plated.
  • VERSATILE SOLUTIONS: Transforms 2 Push Bars into a Panel Bar Set for containment and moving of larger items, lumber, pipe and more. Bars quickly connect/disconnect with metal spring buttons.

PRODUCT INFORMATION

Industrial grade steel bars

PRODUCT SPECS

SPECIFICATIONS: 500 lb torque rating. Extension Bar length 15 inch. Connector Pin length 6 inch. Assembled length 18 inch.
