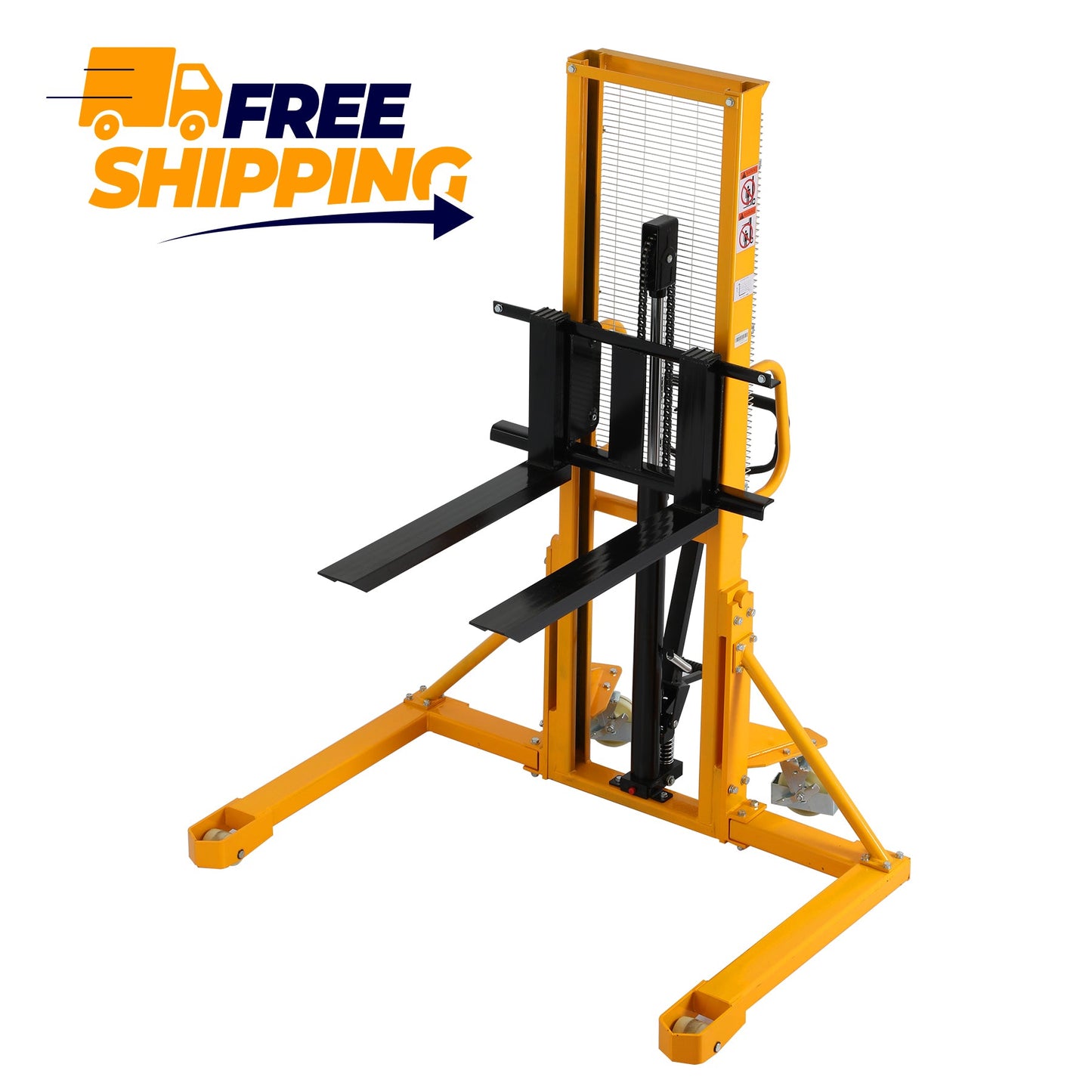

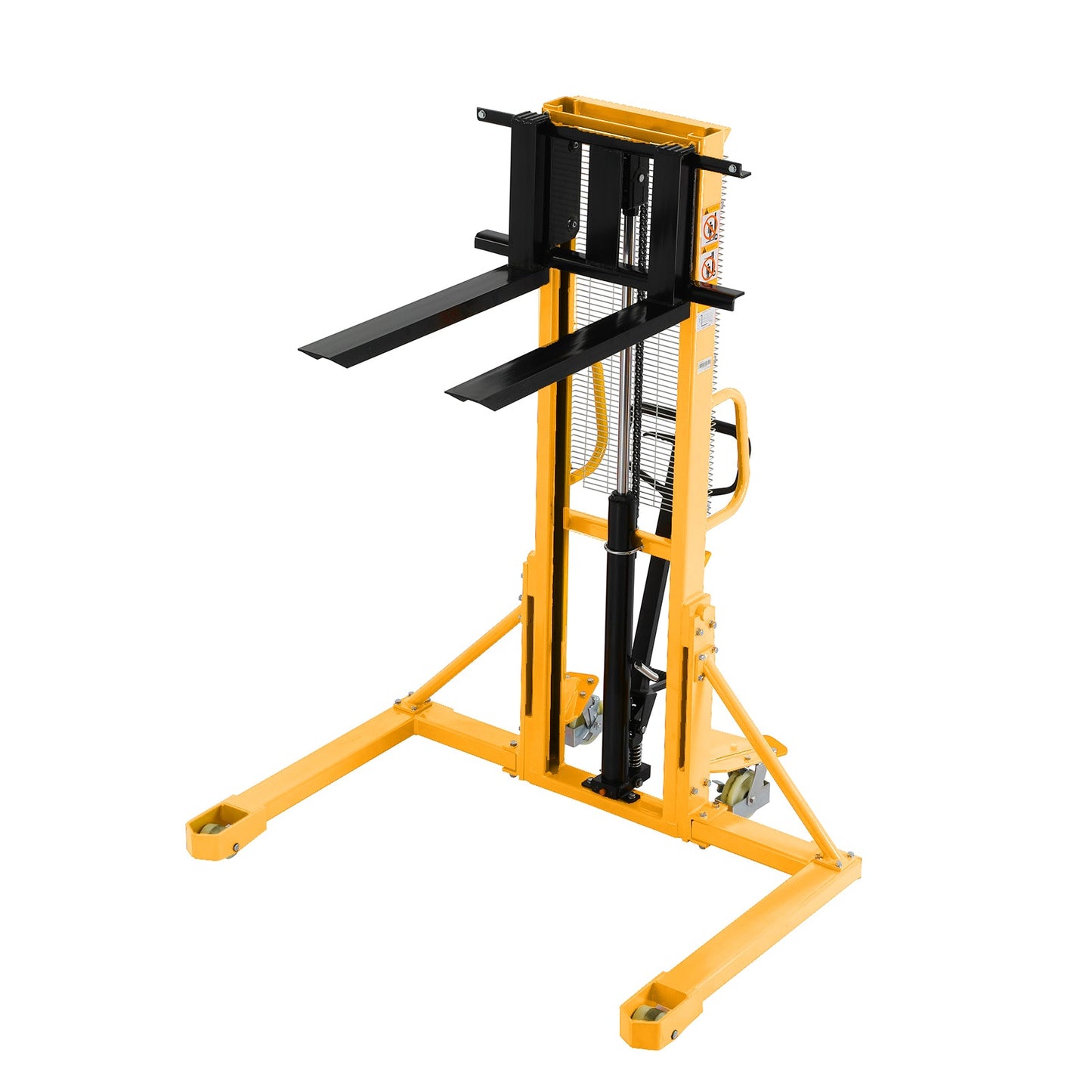

Straddle Legs 1100lbs Cap. 63" Lift Height

Name: Straddle Legs 1100lbs Cap. 63" Lift Height
Brand: APOLLO FORKLIFT LLC
SKU: A-3004
Price: 1900.0 USD
Availability: OutOfStock

$1,900.00

$1,900.00 ~~$2,200.00~~

Shipping calculated at checkout.

Out of stock

Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
High quality steel mast and strong steel construction ensures rigidity and durability
High efficient pumps makes the control easier to operate

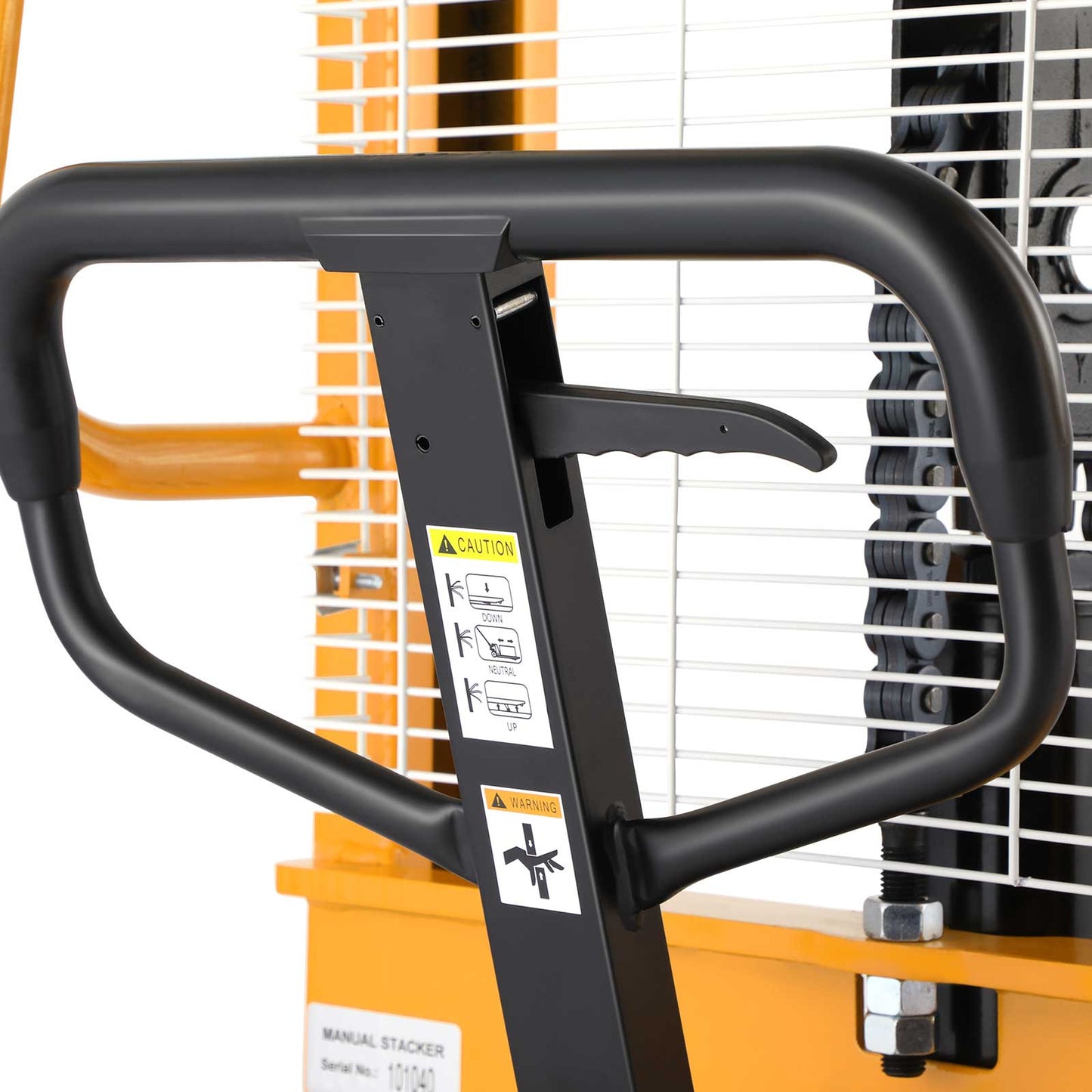

Metal grid protects user from lift chains

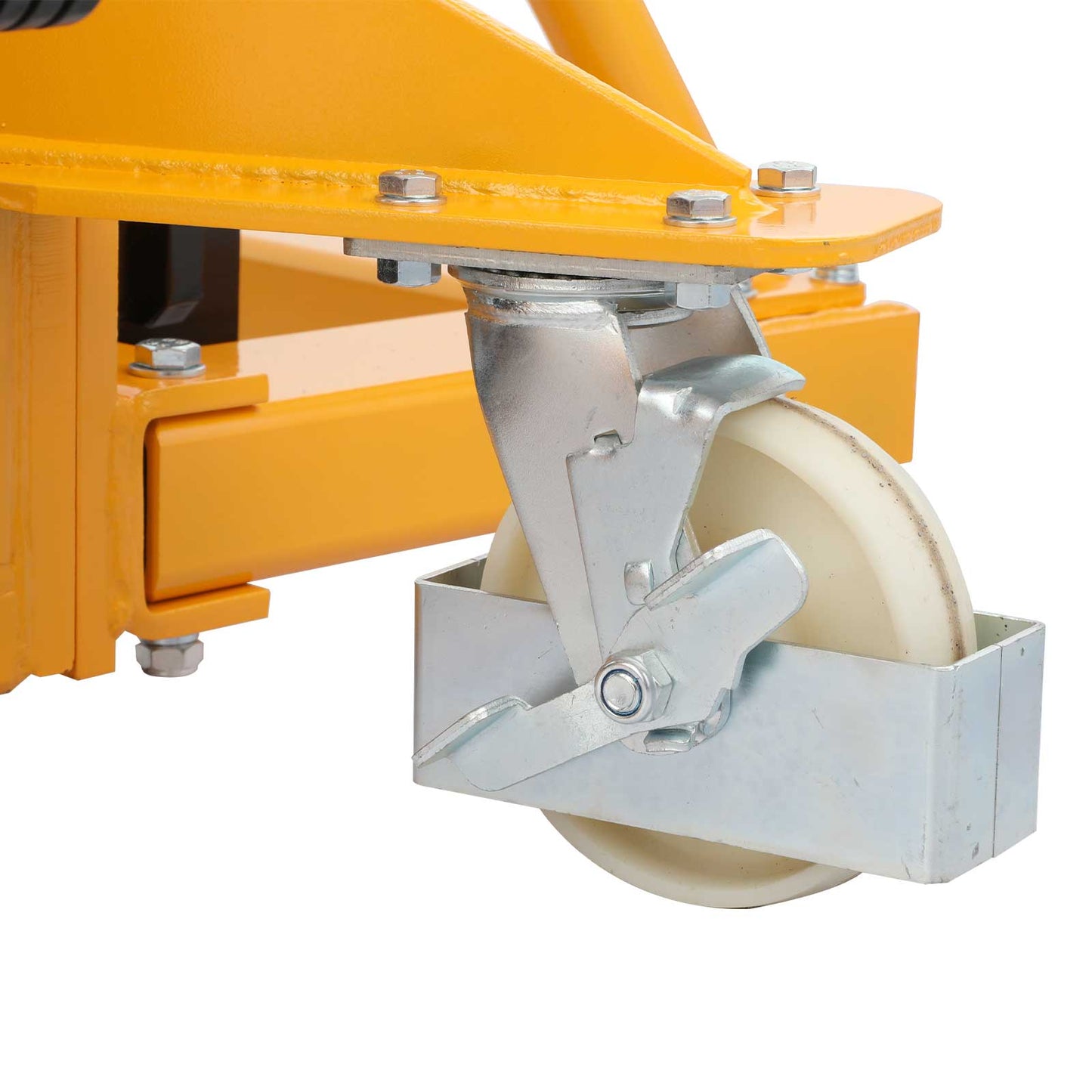

With safety wheel guard and brake system to ensure safety during operation

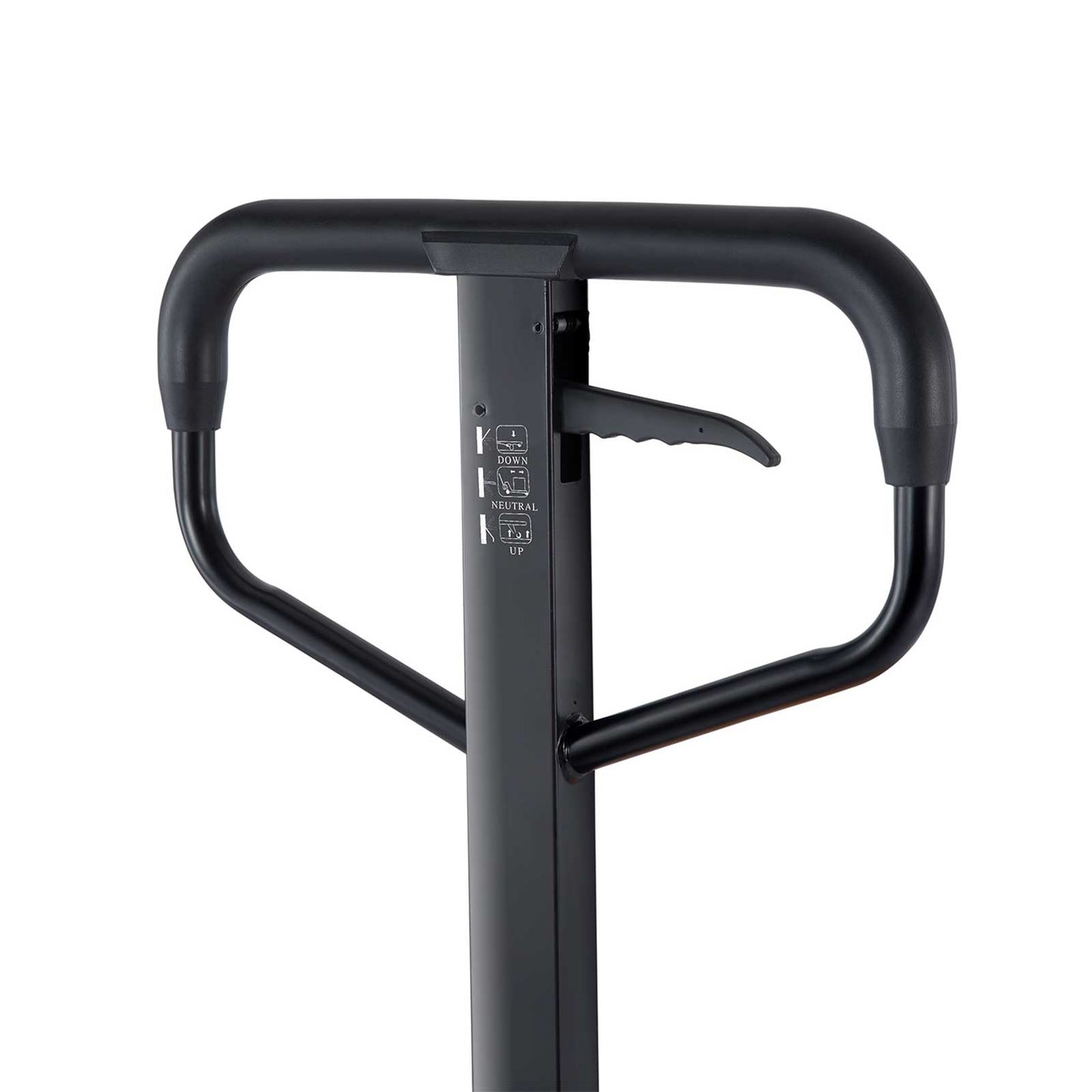

Manually raise and lower loads with foot pump and handle operation.

MODEL NO.	CAPACITY	LIFTING HEIGHT	WHEEL DIAMETER	WEIGHT	Price
A-3005	2200 lbs	63''	5.8''	647 lbs	$2200
A-3004	1100 lbs	63''	5.8''	490 lbs	$2000

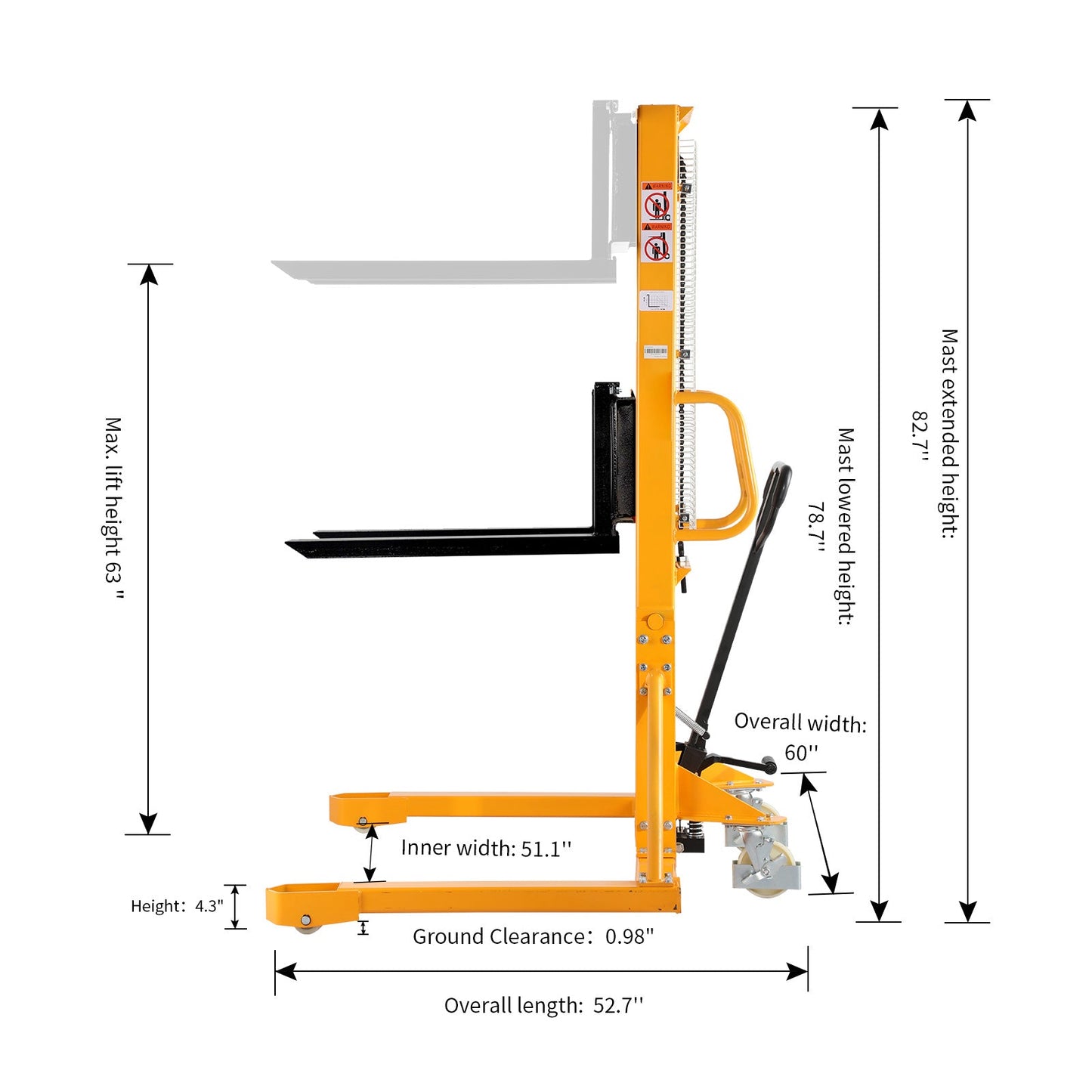

DIMENSIONS:

Overall width: 60''
Overall length: 52.7''
Load center: 19.7''
Recommended Aisle Width: 77.8"
Turning radius: 47.2''

MAST:

Lifting height: 63''
Mast lowered height: 78.7''
Mast extended height: 82.7''

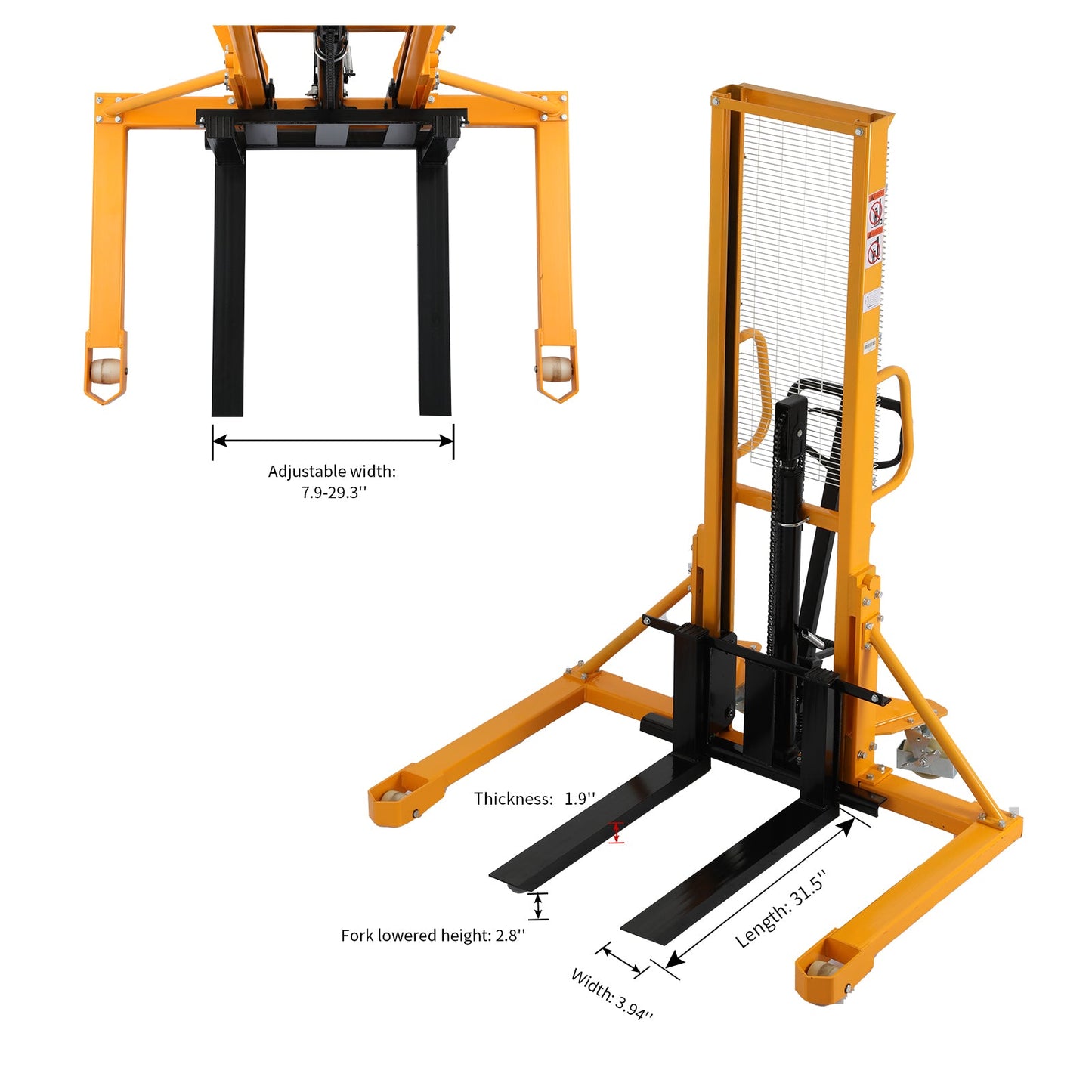

FORKS:

Adjustable width: 7.9-29.3''
Thickness: 1.9''
Width: 3.94''
Length: 31.5''
Fork lowered height: 2.8''

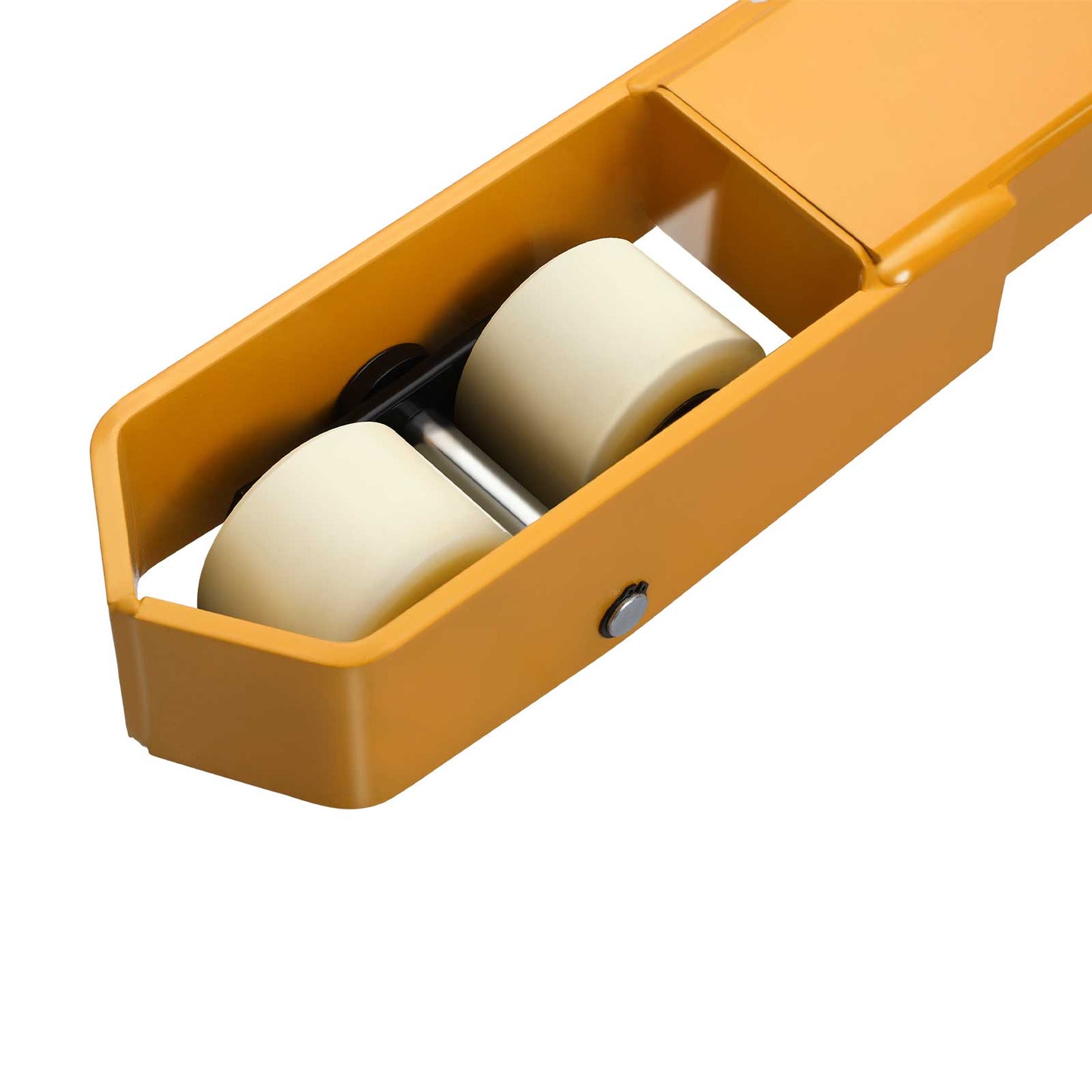

STRADDLE LEGS:

Inner width: 51.1''
Height: 4.3''

FEATURES:

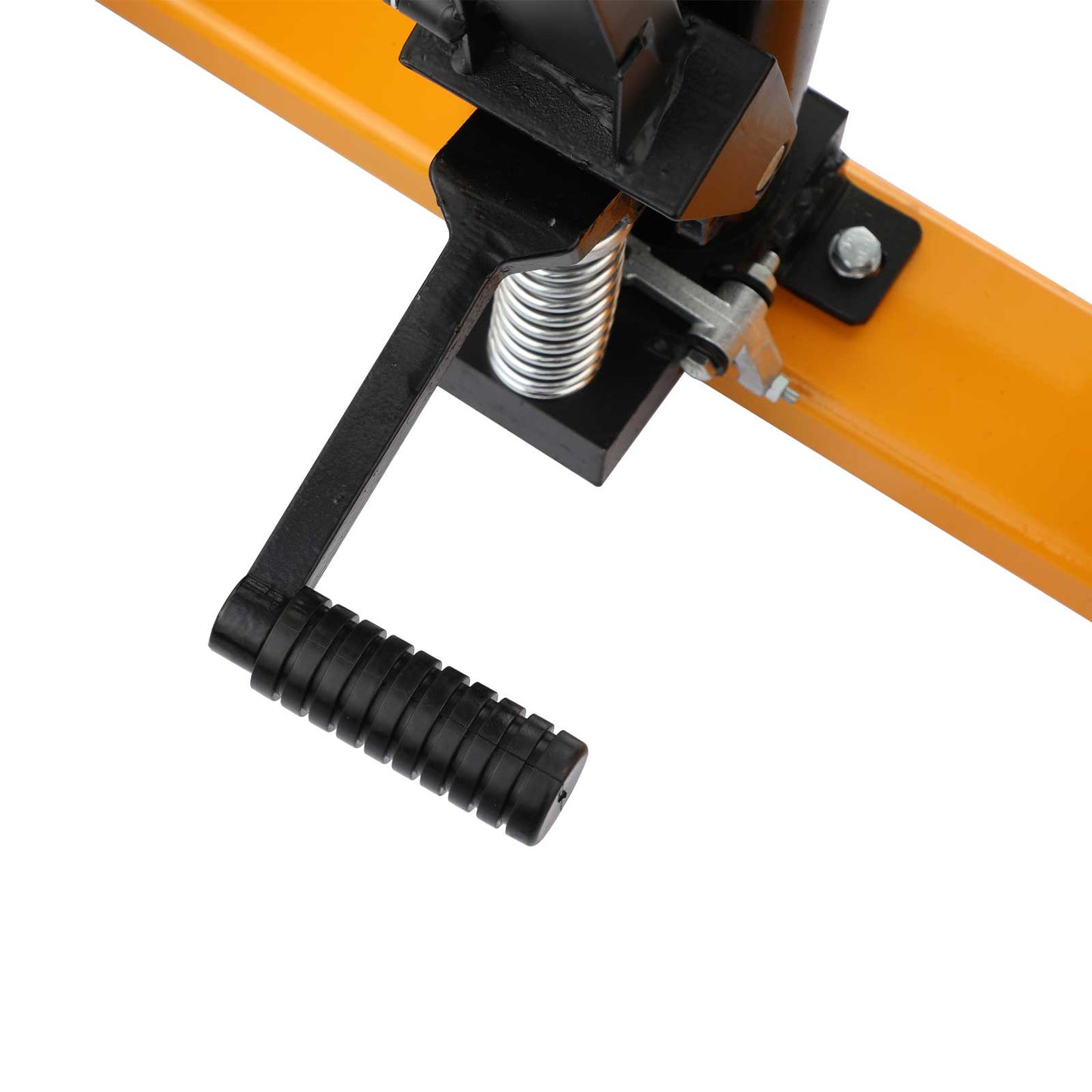

Foot Operated Pump: Lift Height nearly 1'' per stroke

CLICK HERE :Assemble the staddle leg of Manual Stacker.

Assemble the welded fork.
