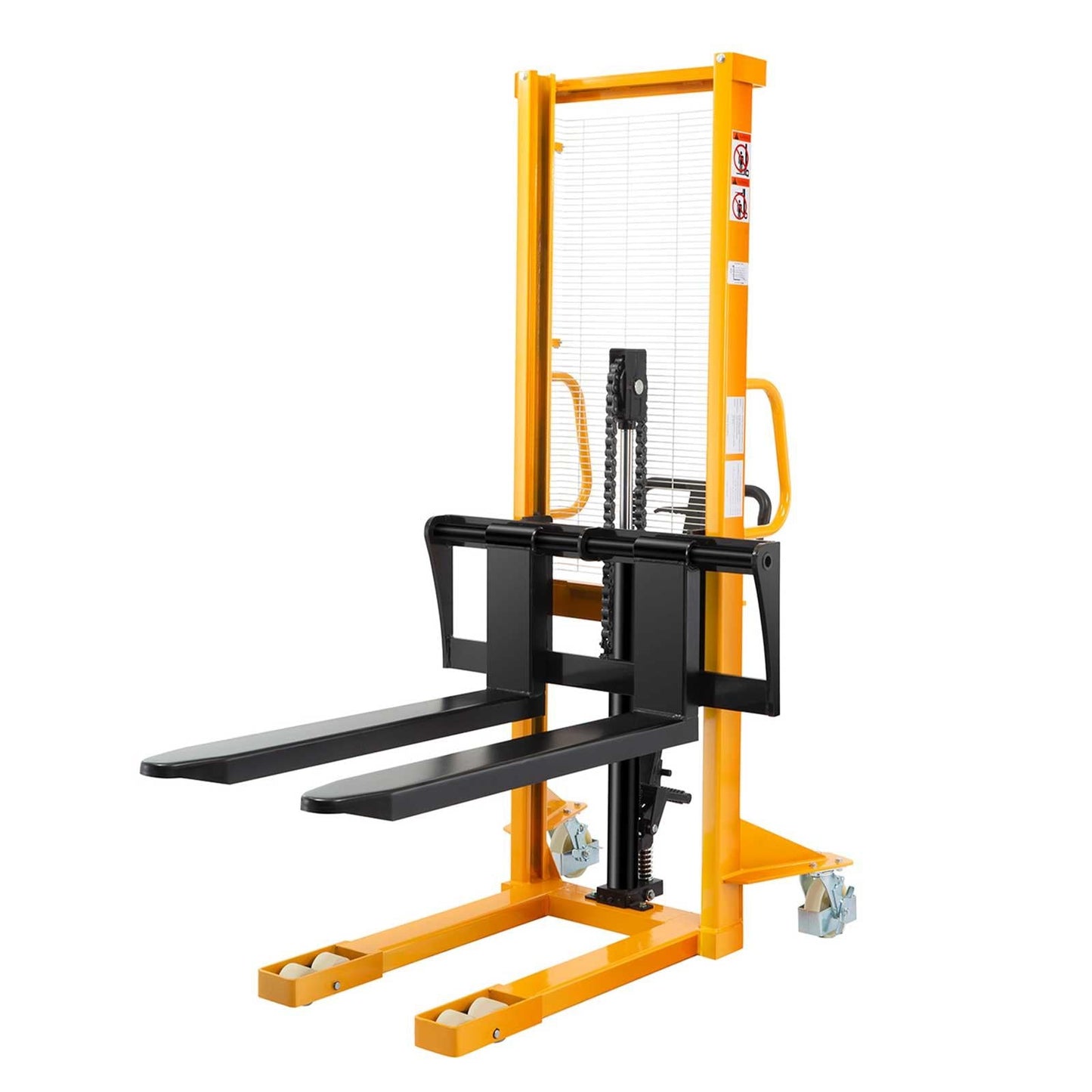

Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200lbs Cap. 63" Lift Height A-3003

Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200lbs Cap. 63" Lift Height A-3003

$1,900.00
$1,900.00 $2,100.00
Shipping calculated at checkout.

Out of stock

  • Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
  • High quality steel mast and strong steel construction ensures rigidity and durability.
  • High efficient pumps makes the control easier to operate.
  • Metal grid protects user from lift chains.
  • With safety wheel guard and brake system to ensure safety during operation.
  • Manually raise and lower loads with foot pump and handle operation.
*MANUAL STACKERS
MODEL NO. CAPACITY  LIFTING HEIGHT  WHEEL DIAMETER WEIGHT  PRICE EACH
A-3003 2200 lbs 63'' 5.8'' 550 lbs $1900
A-3002 1100 lbs  63'' 5.8'' 355 lbs $1600
*SHIPS ASSEMBLED VIA MOTOR FREIGHT

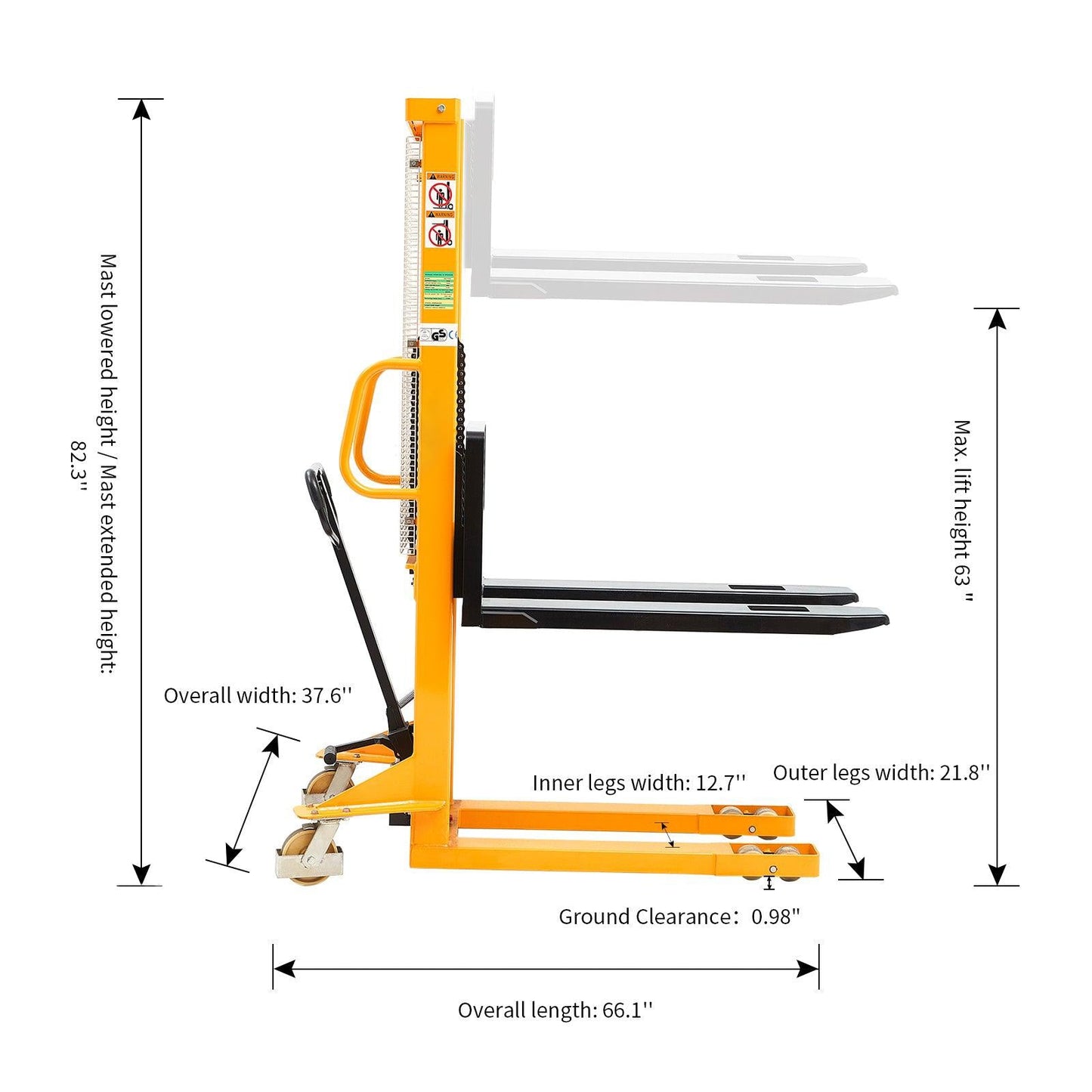

DIMENSIONS

  • Overall width: 37.6''
  • Overall length: 66.1''
  • Load center: 19.7''
  • Recommended Aisle Width: 84.5"
  • Turning radius: 48.6''
  • Inner legs width: 12.7''
  • Outer legs width: 21.8''

MAST

  • Lifting height: 63''
  • Mast lowered height: 82.3''
  • Mast extended height: 82.3''

FORKS

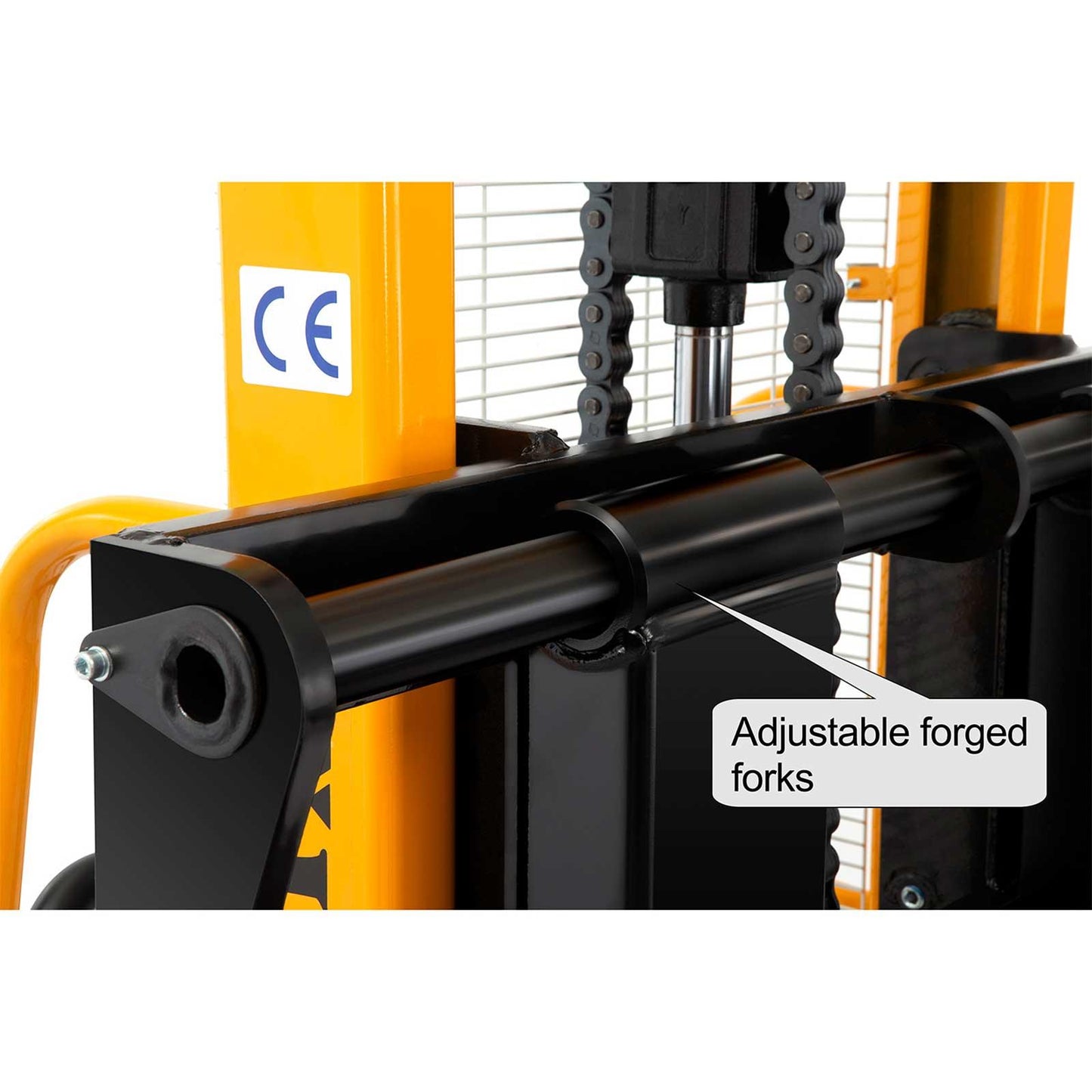

  • Adjustable width: 11.6-36.6''
  • Thickness: 2.4''
  • Width: 5.6''
  • Length: 42''
  • Fork lowered height: 3.5''

FEATURES

  • Foot Operated Pump: Lift Height nearly 1'' per stroke.
Click Here :Assemble the welded fork.

PRODUCT DETAILS

  • MOVES MORE SAFELY IN LESS TIME: Use with the Snap-Loc Dolly System to extend height of our Push Bars and Panel Bars for easier moving of taller cargo items.
  • HEAVY DUTY BUILT TO LAST: Thick heavy duty 1-1/4 in industrial grade steel with powder coated finish impervious to contaminants/weather. Steel connectors are scratch/corrosion resistant zinc plated.
  • VERSATILE SOLUTIONS: Transforms 2 Push Bars into a Panel Bar Set for containment and moving of larger items, lumber, pipe and more. Bars quickly connect/disconnect with metal spring buttons.

PRODUCT INFORMATION

Industrial grade steel bars

PRODUCT SPECS

SPECIFICATIONS: 500 lb torque rating. Extension Bar length 15 inch. Connector Pin length 6 inch. Assembled length 18 inch.
