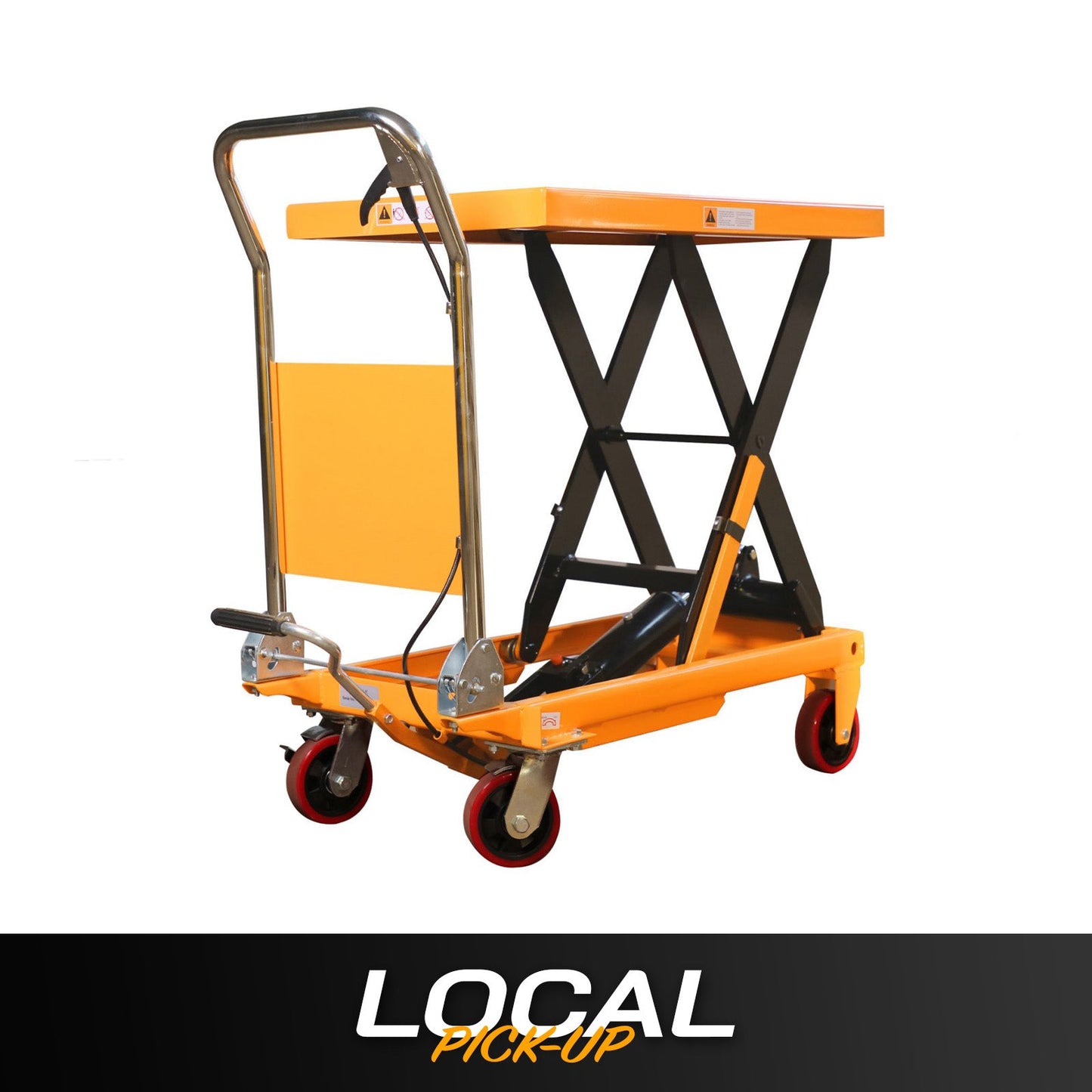

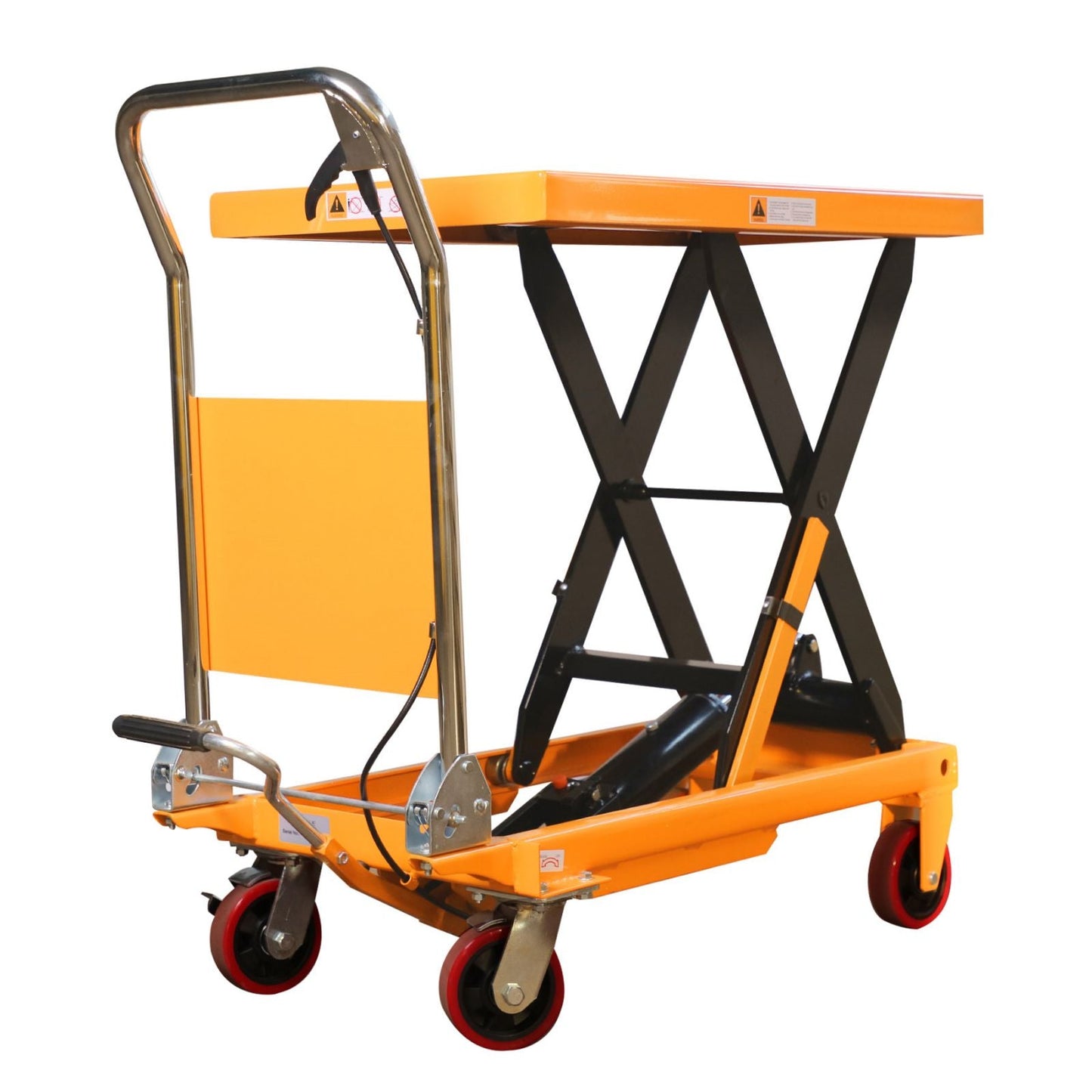

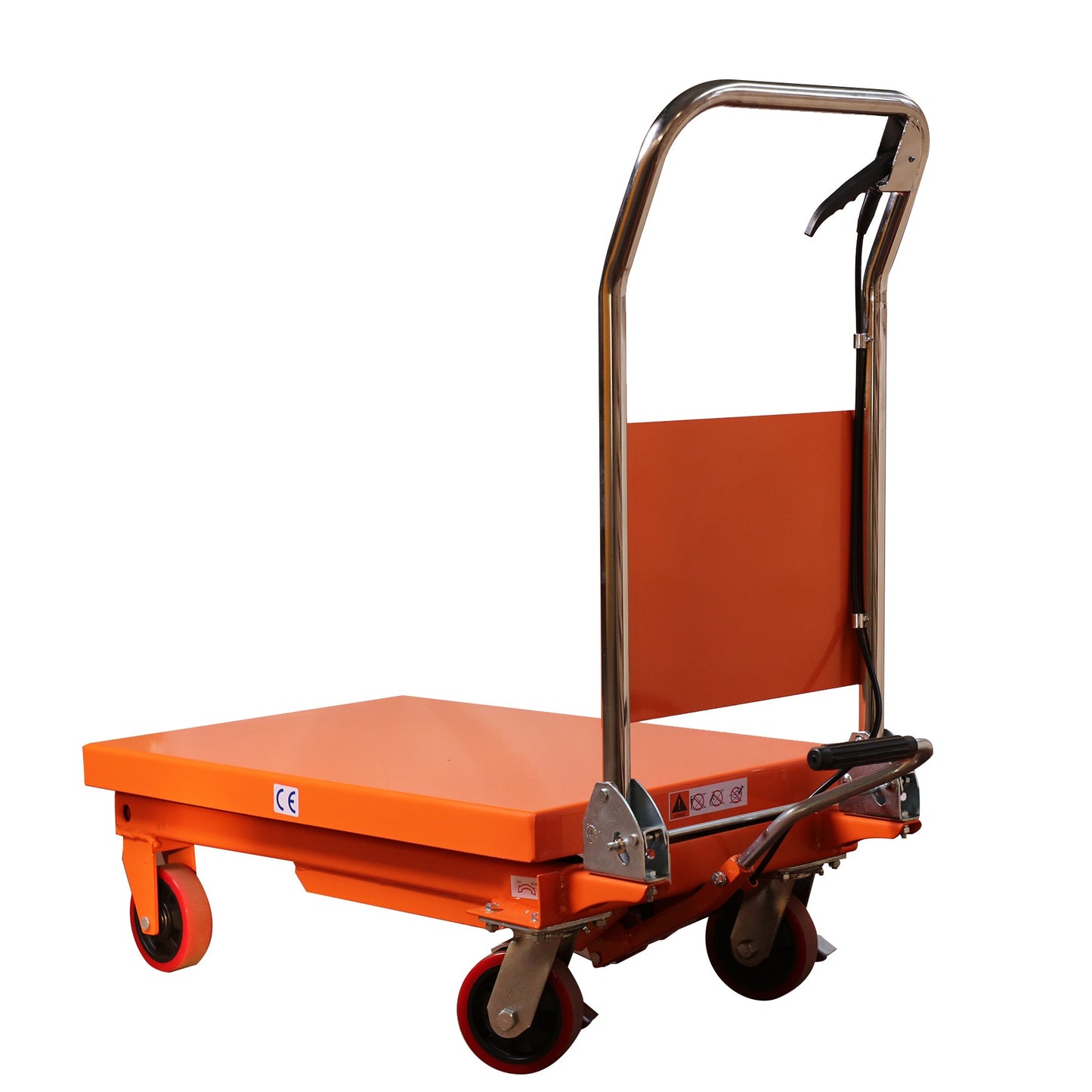

Single Scissor Lift Table 1100lbs. 35.4" lifting height

Single Scissor Lift Table 1100lbs. 35.4" lifting height

$285.00
$285.00 $379.99
Shipping calculated at checkout.

Out of stock

MOBILE  MANUAL LIFT TABLE

<
MODEL NO. PLATFORM L*W CAPACITY HEIGHT LOWERED HEIGHT RAISED  HEIGHT EXTENDED WT (LBS) PRICE EACH
A-2003 27*18" 330 lbs 11.9'' 43'' 31.4" 141 $395
A-2007 36*20'' 770 lbs 13.8'' 51'' 37.4'' 223 $595
A-2010 48*24'' 1760 lbs 18.7'' 59'' 40.3'' 379 $895

 *SINGLE SCISSOR LIFT TABLES

MODEL NO. PLATFORM L*W CAPACITY HEIGHT LOWERED HEIGHT RAISED HEIGHT EXTENDED WT (LBS) PRICE EACH
A-2016 27*18" 330 lbs 8.8'' 29'' 20.2'' 92 $165
A-2001 32*20'' 660 lbs  11'' 35.4'' 24.4'' 165 $235
A-2002 32*20'' 1100 lbs 11'' 35.4'' 24.4'' 187 $285
A-2005 40*20'' 1760 lbs 16.5'' 39.5'' 22.9'' 254 $375
A-2013 39.4x19.7'' 440 lbs 13'' 26.4'' 39.4'' 156 $295
A-2015 48x24'' 3300 lbs 16.5'' 39.4'' 22.8'' 371 $445
A-2014 40x20'' 2200 lbs 15'' 39.4'' 24.4'' 325 $405


DIMENSIONS

  • Platform(Actual): 32*19.7*2'' (L*W*Thickness)
  • Height:
    • Handle Upright: 39''
    • Table Max.lifting height: 35.4"
    • Table lowered height: 11"
  • Table Material: Steel
  • Frame Material: Steel

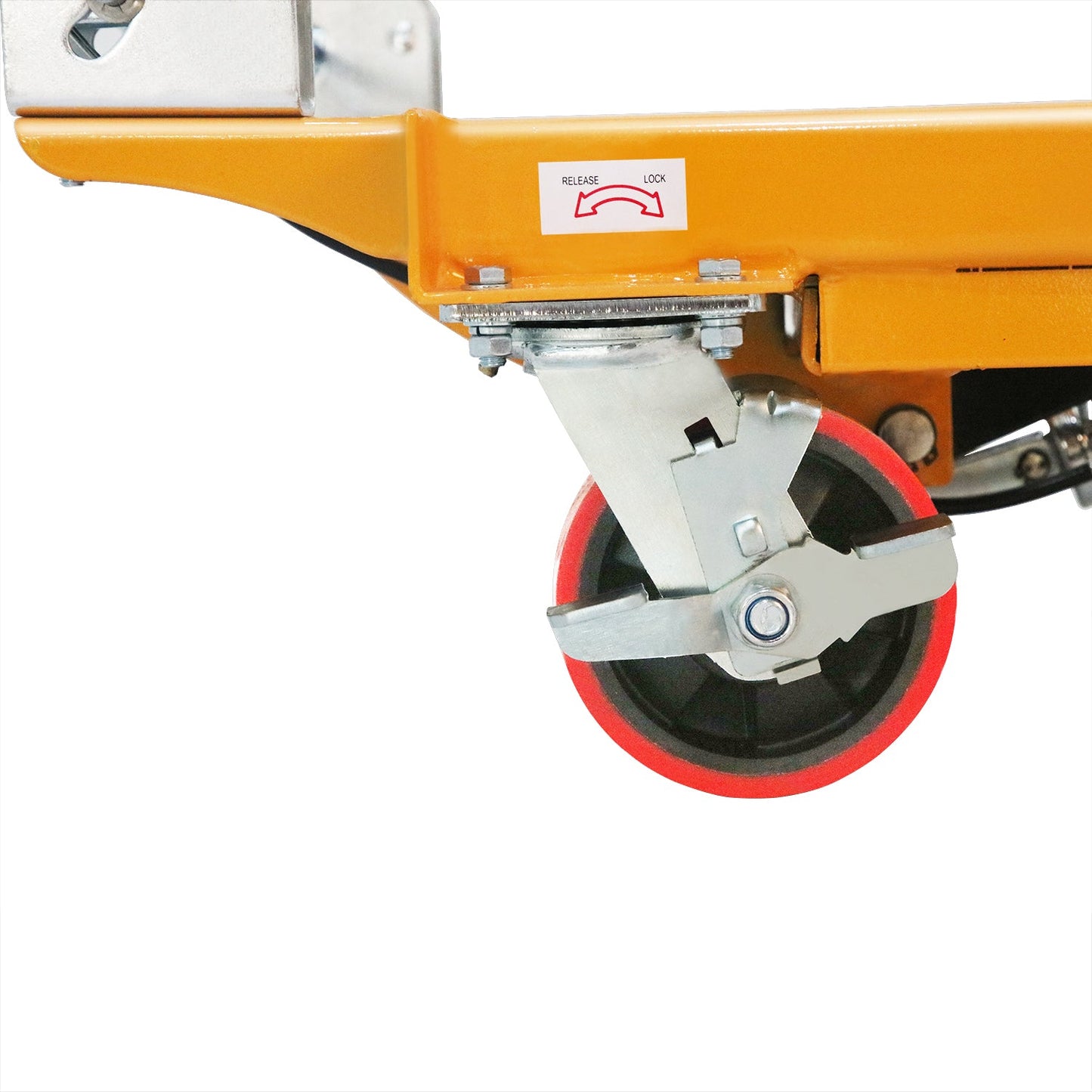

  • Brake Type: Foot brake
  • Scissor Type:Single
  • Lift Control: Foot Pump
  • Lift Mechanism: Hydraulic

FEATURES:

  • Foot pedal cycles to max height: 45
  • Handle can be folded down
  • Handle plate provides protection from falling down

Click Here :Assemble the handle of lift tables.

Color

PRODUCT DETAILS

  • MOVES MORE SAFELY IN LESS TIME: Use with the Snap-Loc Dolly System to extend height of our Push Bars and Panel Bars for easier moving of taller cargo items.
  • HEAVY DUTY BUILT TO LAST: Thick heavy duty 1-1/4 in industrial grade steel with powder coated finish impervious to contaminants/weather. Steel connectors are scratch/corrosion resistant zinc plated.
  • VERSATILE SOLUTIONS: Transforms 2 Push Bars into a Panel Bar Set for containment and moving of larger items, lumber, pipe and more. Bars quickly connect/disconnect with metal spring buttons.

PRODUCT INFORMATION

Industrial grade steel bars

PRODUCT SPECS

SPECIFICATIONS: 500 lb torque rating. Extension Bar length 15 inch. Connector Pin length 6 inch. Assembled length 18 inch.
