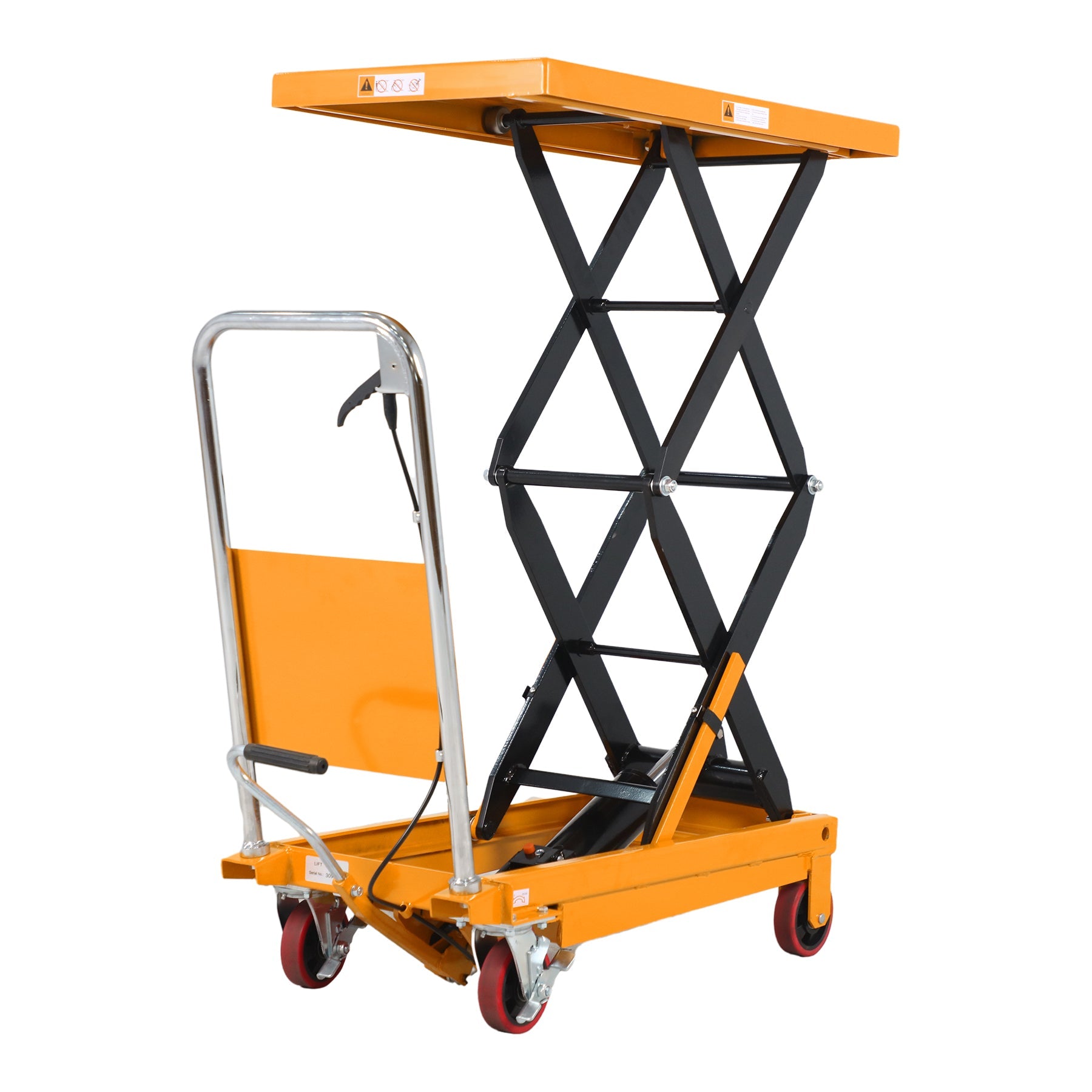

Double Scissors Lift Table 770 lbs. 51.2" lifting height
Double Scissors Lift Table 770 lbs. 51.2" lifting height
Double Scissors Lift Table 770 lbs. 51.2" lifting height

Double Scissors Lift Table 770 lbs. 51.2" lifting height

$595.00 Sale

MOBILE  MANUAL LIFT TABLE

MODEL NO. PLATFORM L*W CAPACITY HEIGHT LOWERED HEIGHT RAISED  HEIGHT EXTENDED WT (LBS) PRICE EACH
A-2003 27*18" 330 lbs 11.9'' 43'' 31.4" 141 $395
A-2007 36*20'' 770 lbs 13.8'' 51'' 37.4'' 223 $595
A-2010 48*24'' 1760 lbs 18.7'' 59'' 40.3'' 379 $895

 *SINGLE SCISSOR LIFT TABLES

MODEL NO. PLATFORM L*W CAPACITY HEIGHT LOWERED HEIGHT RAISED HEIGHT EXTENDED WT (LBS) PRICE EACH
A-2016 27*18" 330 lbs 8.8'' 29'' 20.2'' 92 $165
A-2001 32*20'' 660 lbs  11'' 35.4'' 24.4'' 165 $235
A-2002 32*20'' 1100 lbs 11'' 35.4'' 24.4'' 187 $285
A-2005 40*20'' 1760 lbs 16.5'' 39.5'' 22.9'' 254 $375
A-2013 39.4x19.7'' 440 lbs 13'' 26.4'' 39.4'' 156 $295
A-2015 48x24'' 3300 lbs 16.5'' 39.4'' 22.8'' 371 $445
A-2014 40x20'' 2200 lbs 15'' 39.4'' 24.4'' 325 $405

DIMENSIONS

  • Platform(Actual): 35.8*19.7*2'' (L*W*Thickness)
  • Height:
    • Handle Upright: 38'' (can not be folded down)
    • Table Max.lifting height: 51"
    • Table lowered height: 13.8"
  • Table Material: Steel
  • Frame Material: Steel
  • Brake Type: Foot brake
  • Scissor Type: Dual
  • Lift Control: Foot Pump
  • Lift Mechanism: Hydraulic

FEATURES

  • Foot pedal cycles to max height: 60
  • Handle plate provides protection from falling down

Click Here :Assemble the handle of lift tables.
