Manual Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height A-3002
Regular price
$1,800.00
$1,459.00
Sale
- Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
- High quality steel mast and strong steel construction ensures rigidity and durability.
- High efficient pumps makes the control easier to operate.
- Metal grid protects user from lift chains.
- With safety wheel guard and brake system to ensure safety during operation.
- Manually raise and lower loads with foot pump and handle operation.
| *MANUAL STACKERS | |||||
| MODEL NO. | CAPACITY | LIFTING HEIGHT | WHEEL DIAMETER | WEIGHT | PRICE EACH |
| A-3002 | 1100 lbs | 63'' | 5.8'' | 355 lbs | $1600 |
| A-3003 | 2200 lbs | 63'' | 5.8'' | 550 lbs | $1900 |
| *SHIPS ASSEMBLED VIA MOTOR FREIGHT | |||||

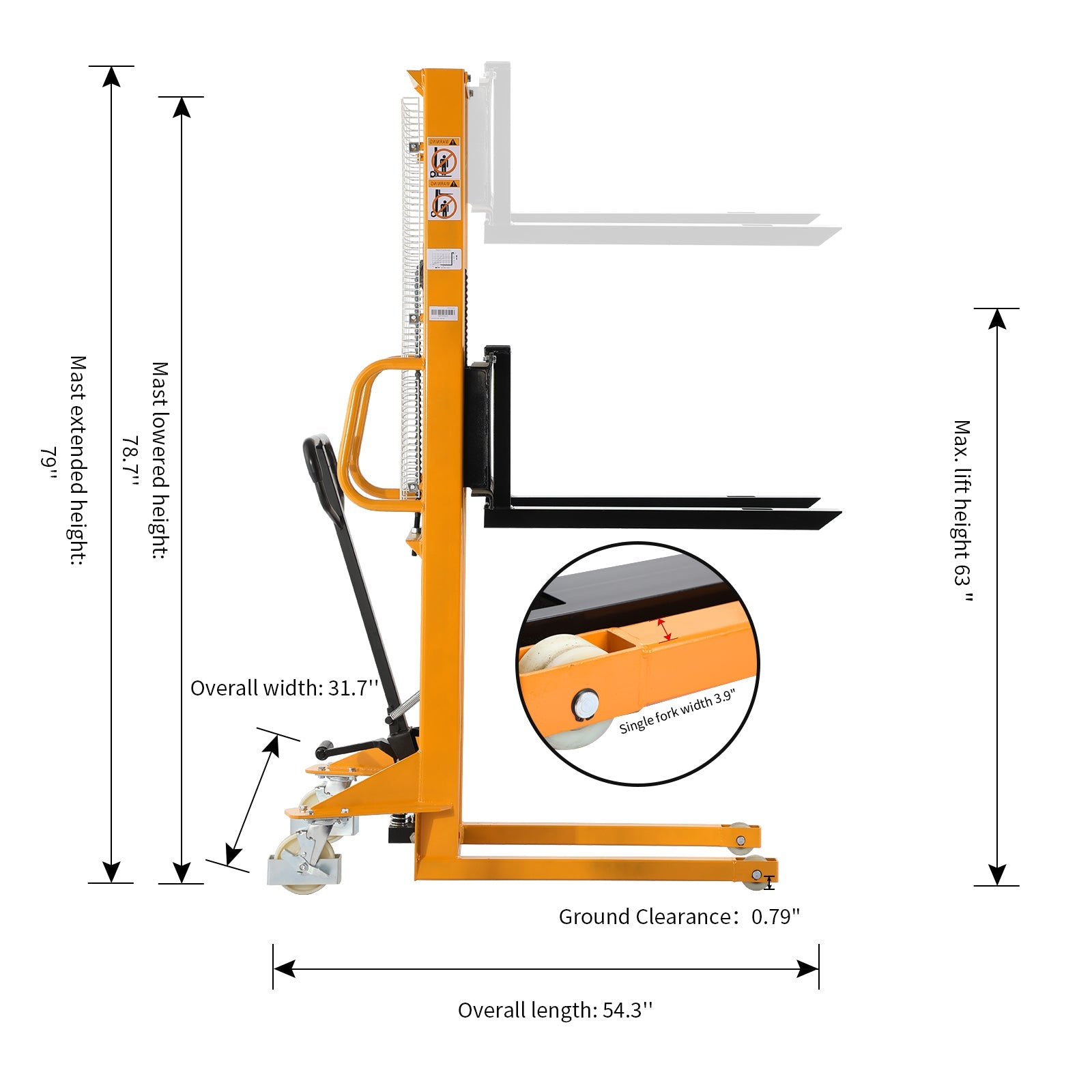

DIMENSIONS
- Overall width: 31.7''
- Overall length: 54.3''
- Load center: 19.7''
- Recommended Aisle Width: 75.4"
- Turning radius: 48.6''
- Inner legs width: 16.5''
- Outer legs width: 20.5''
MAST
- Lifting height: 63''
- Mast lowered height:78.7''
- Mast extended height: 79''

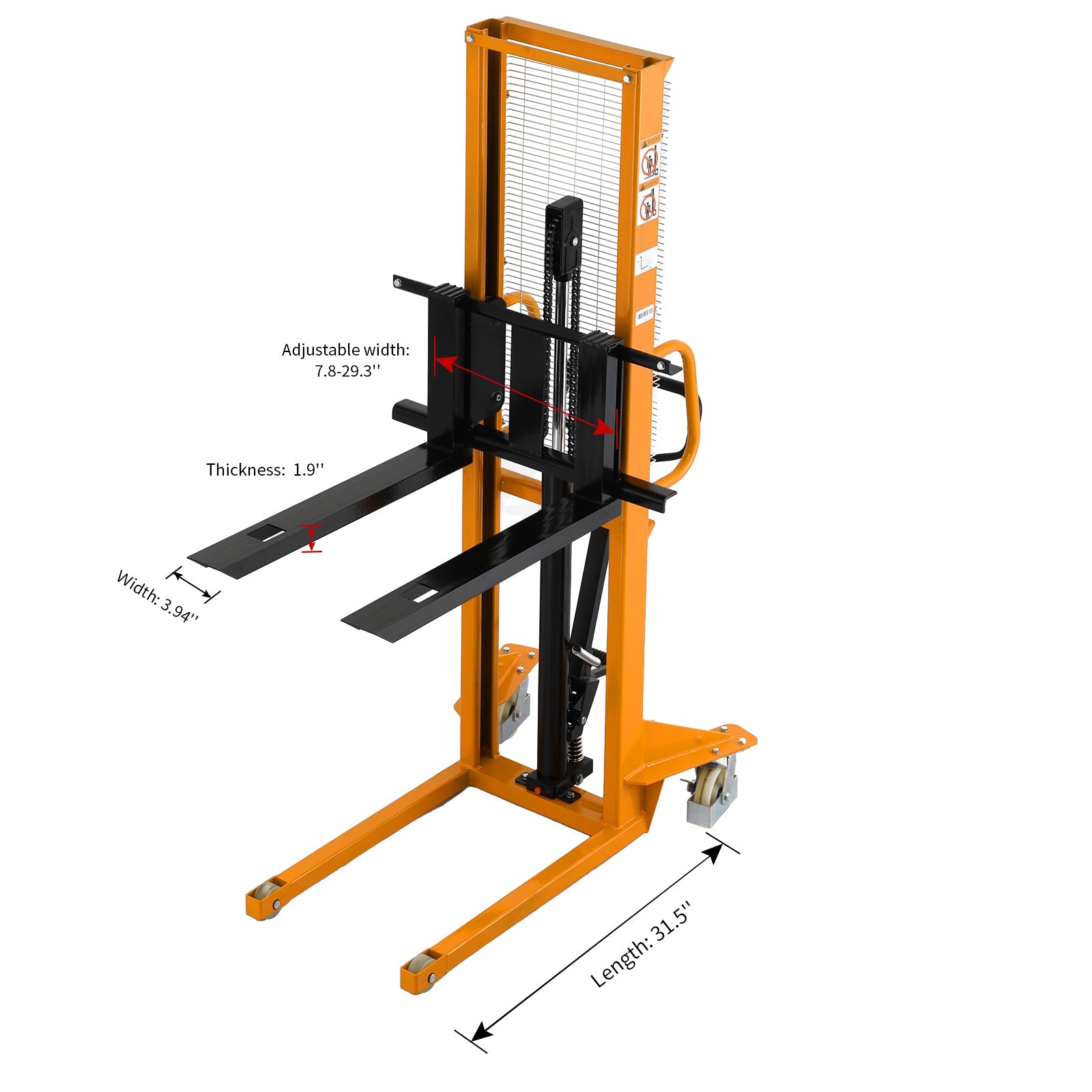

FORKS
- Adjustable width: 7.9-29.3''
- Thickness: 1.9''
- Width: 3.94''
- Length: 31.5''
- Fork lowered height: 3.5''
FEATURES
- Foot Operated Pump: Lift Height nearly 1'' per stroke.
Click Here :Assemble the welded fork.
