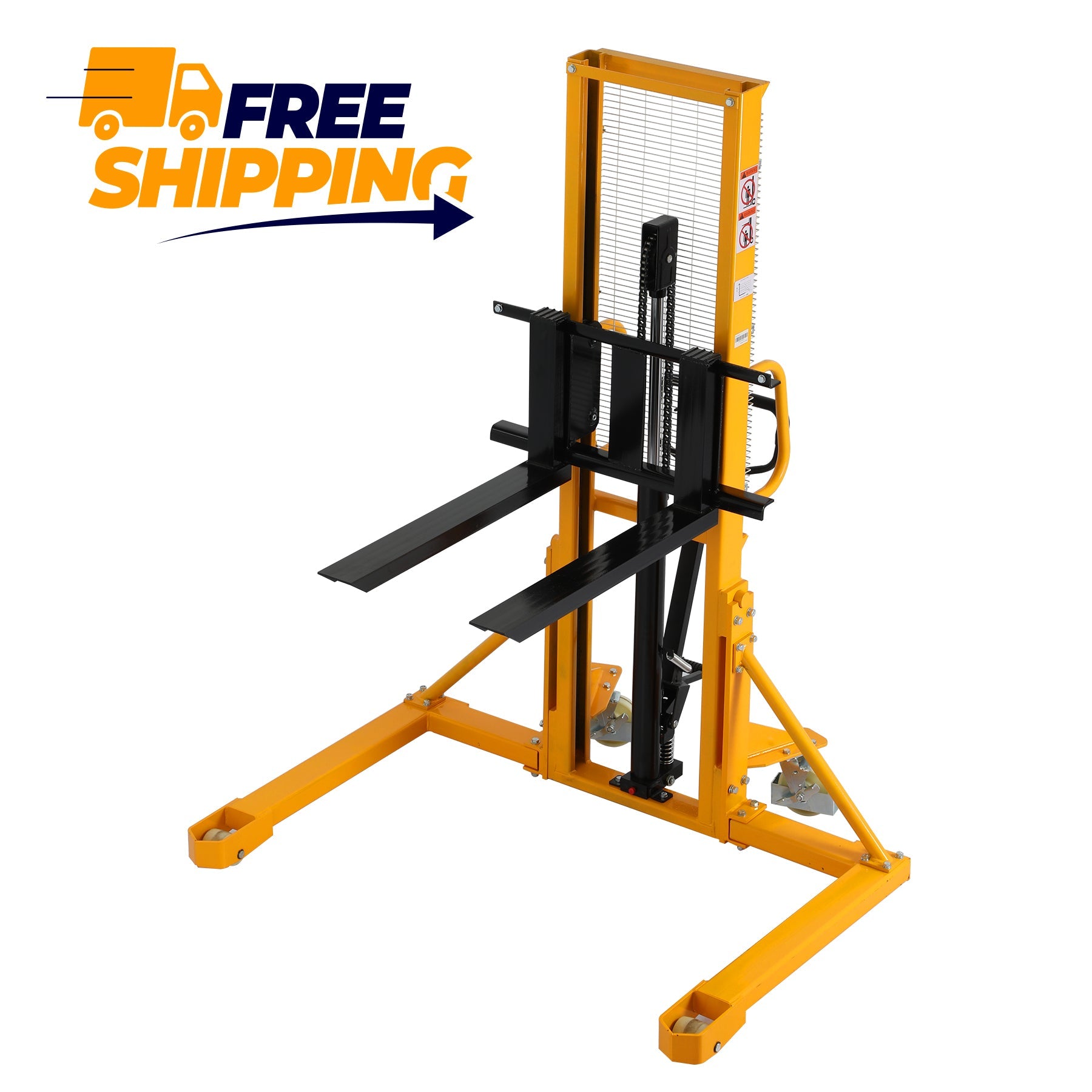

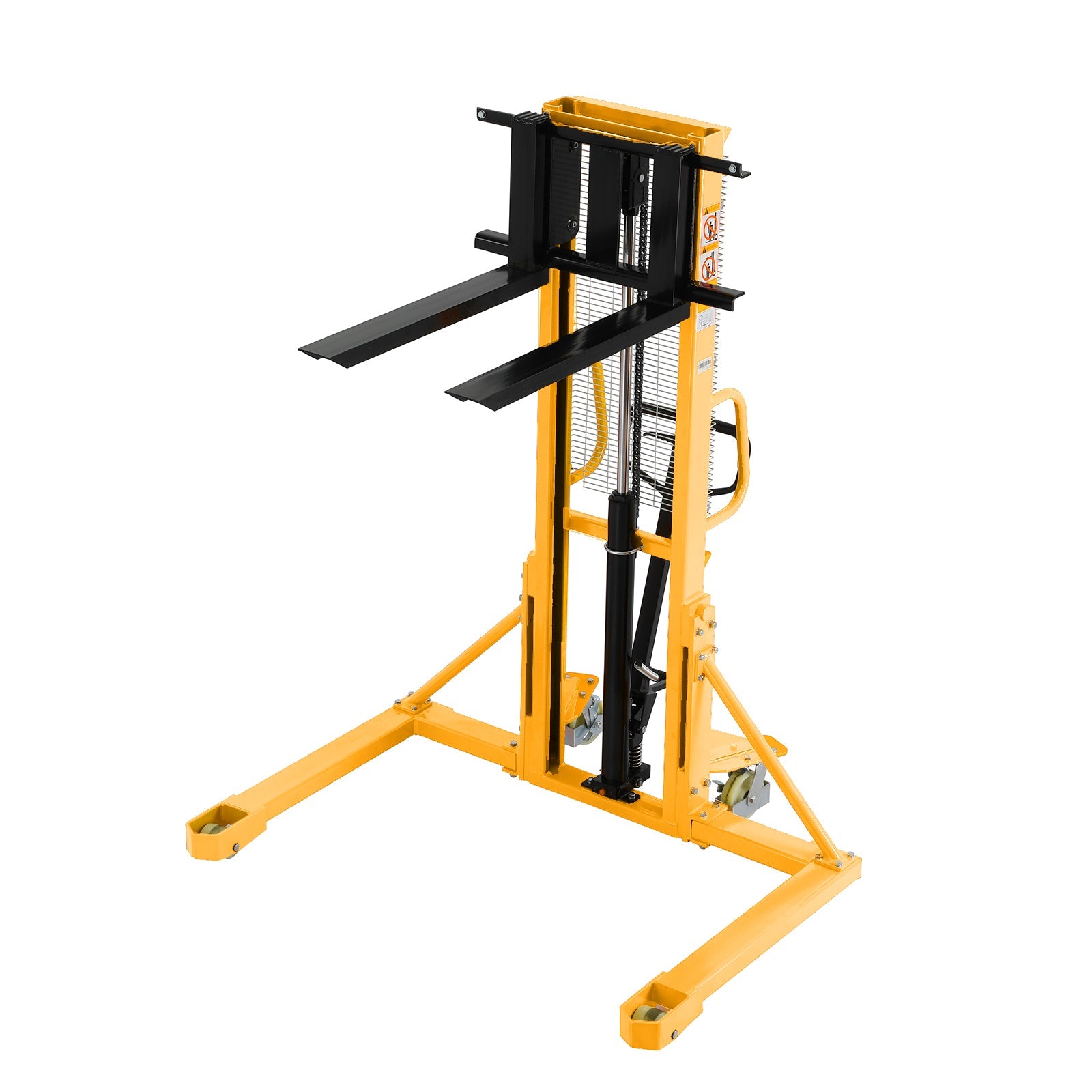

Straddle Legs 1100lbs Cap. 63" Lift Height
Regular price
$2,200.00
$1,900.00
Sale
- Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
- High quality steel mast and strong steel construction ensures rigidity and durability
- High efficient pumps makes the control easier to operate

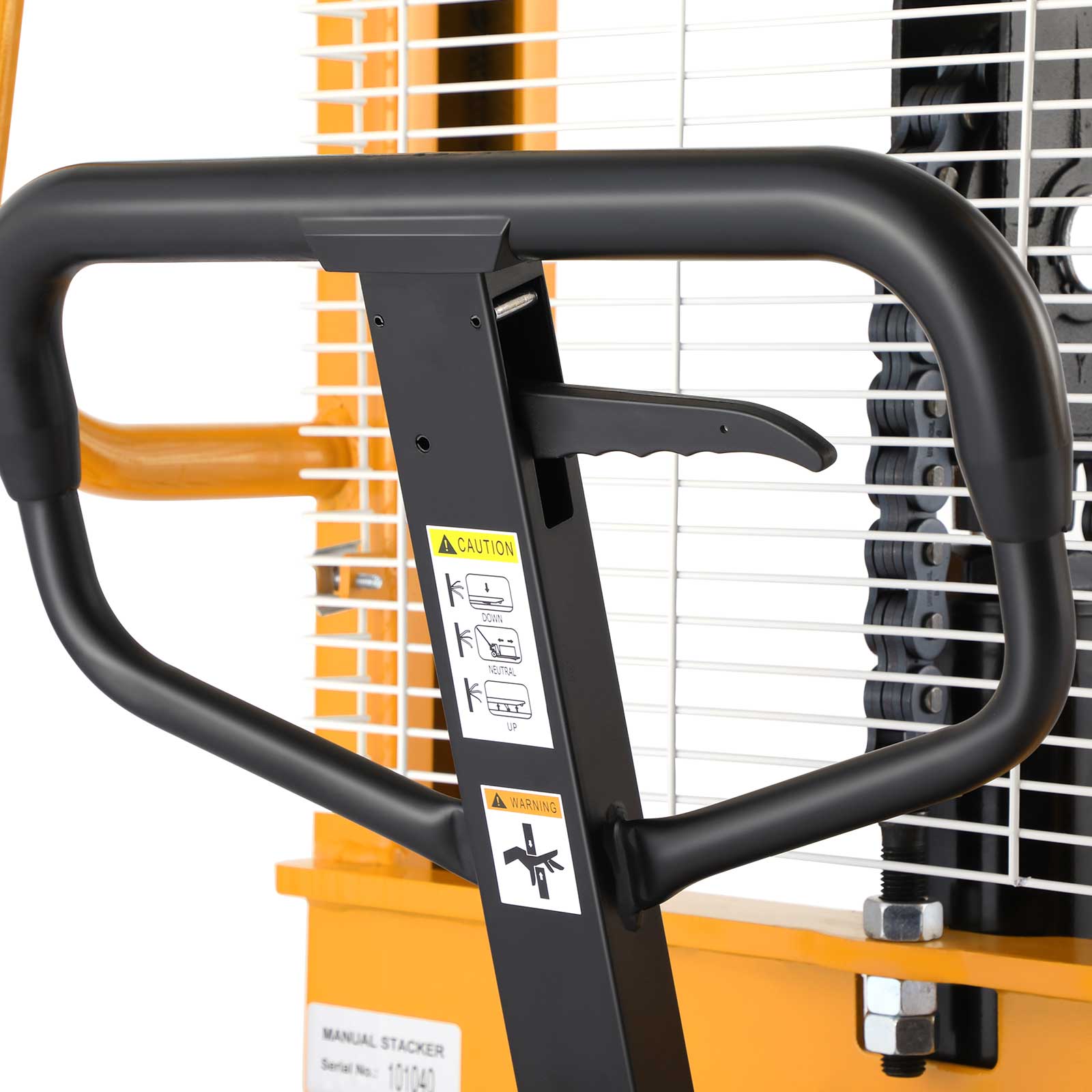

- Metal grid protects user from lift chains

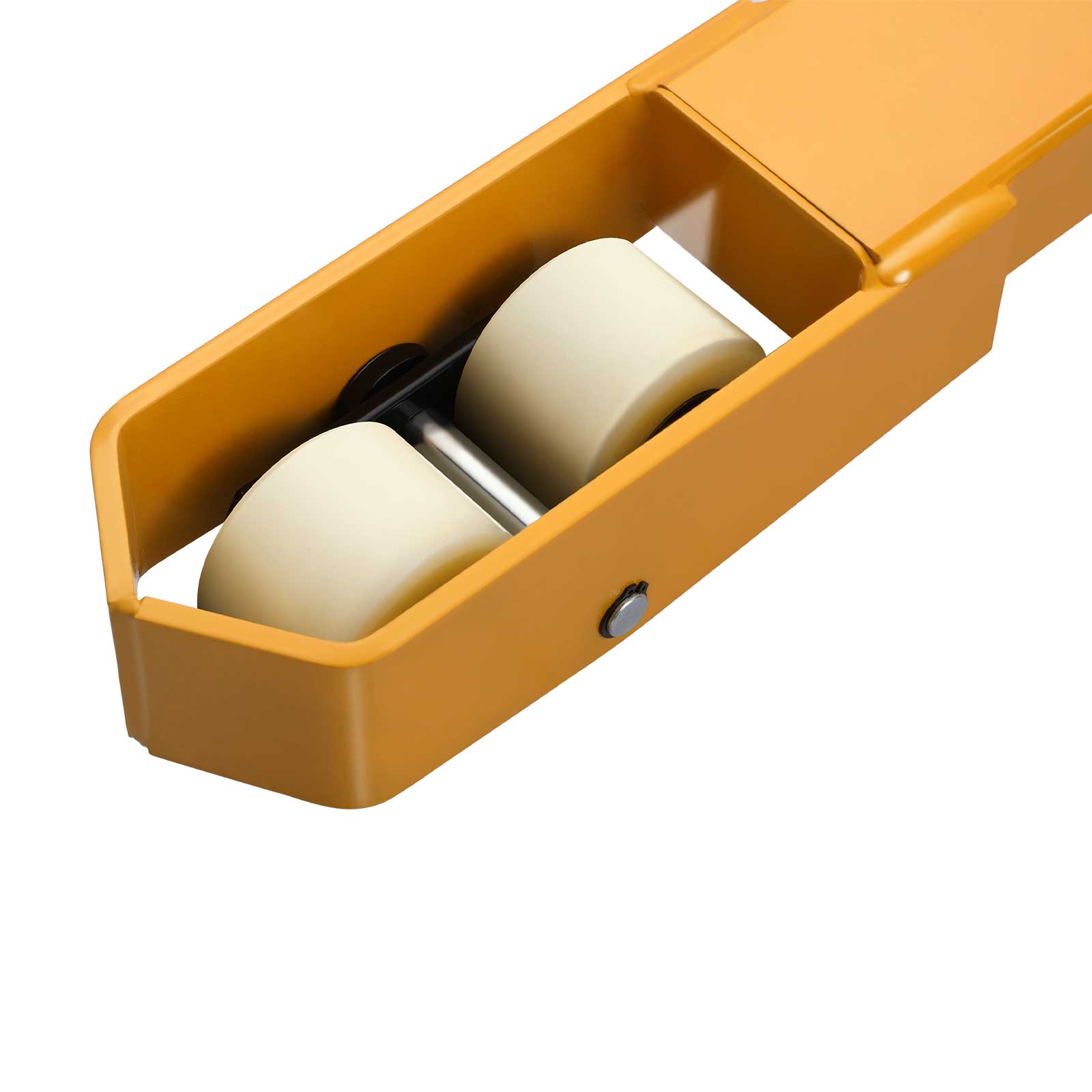

- With safety wheel guard and brake system to ensure safety during operation

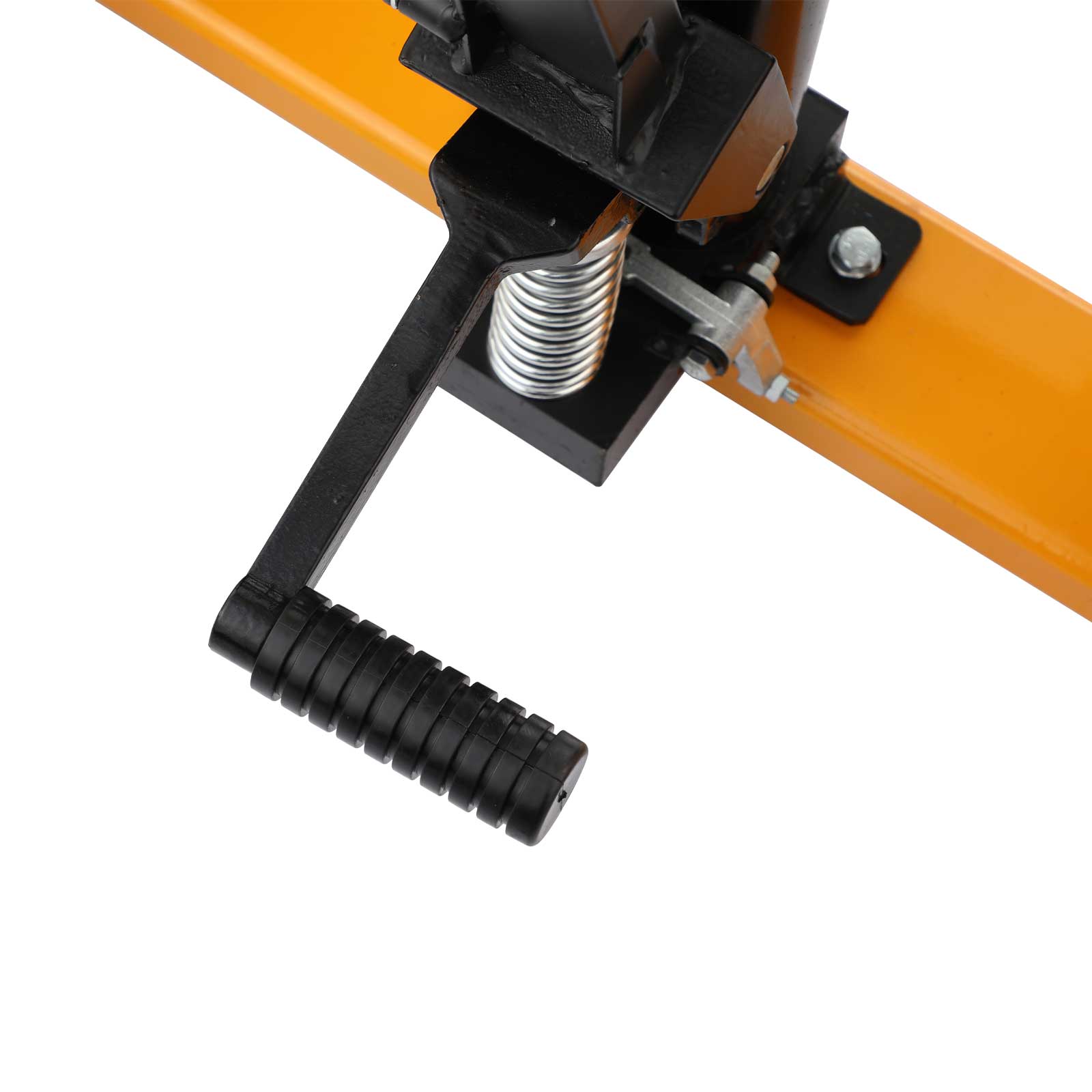

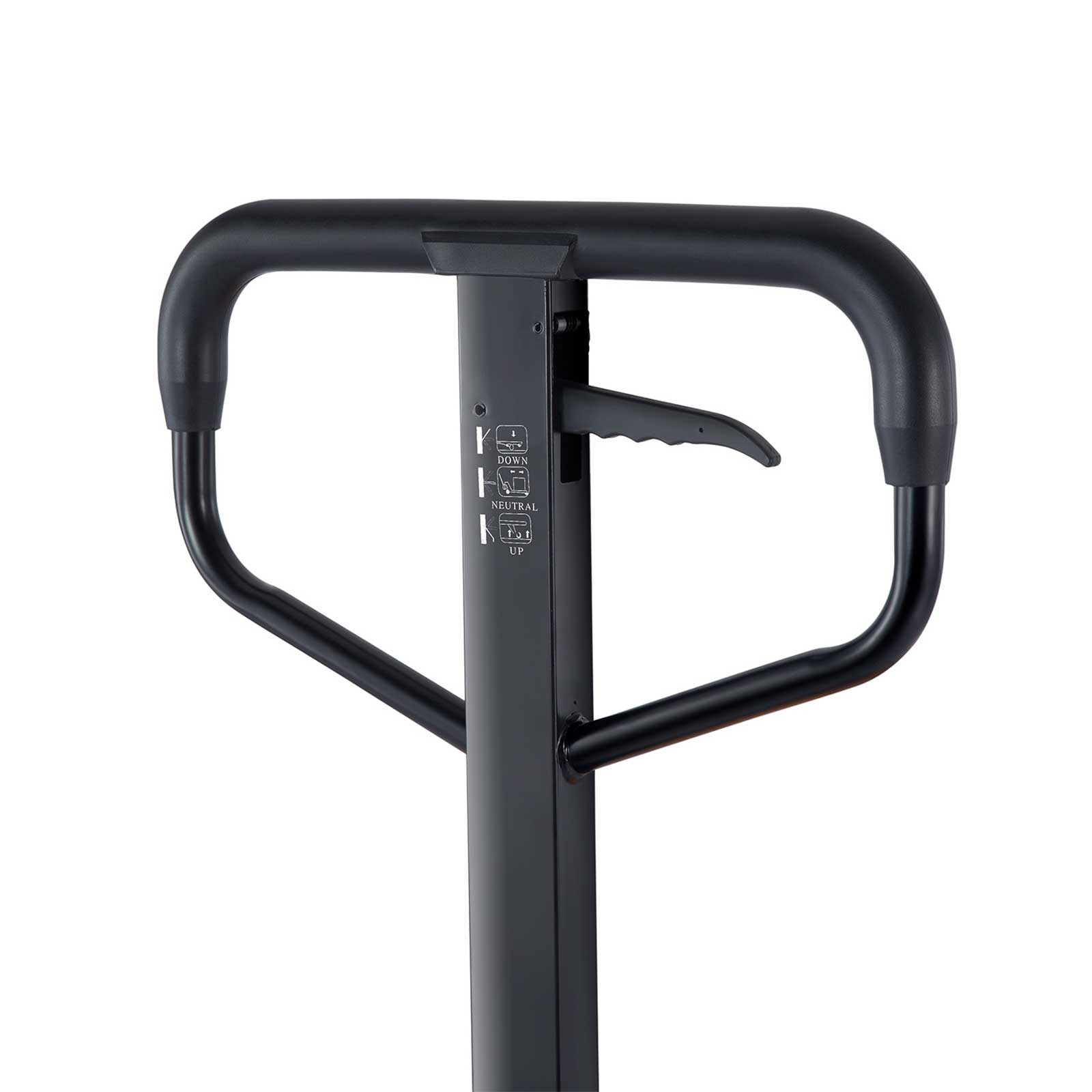

- Manually raise and lower loads with foot pump and handle operation.
| MODEL NO. | CAPACITY | LIFTING HEIGHT | WHEEL DIAMETER | WEIGHT | Price |
| A-3005 | 2200 lbs | 63'' | 5.8'' | 647 lbs | $2200 |
| A-3004 | 1100 lbs | 63'' | 5.8'' | 490 lbs | $2000 |

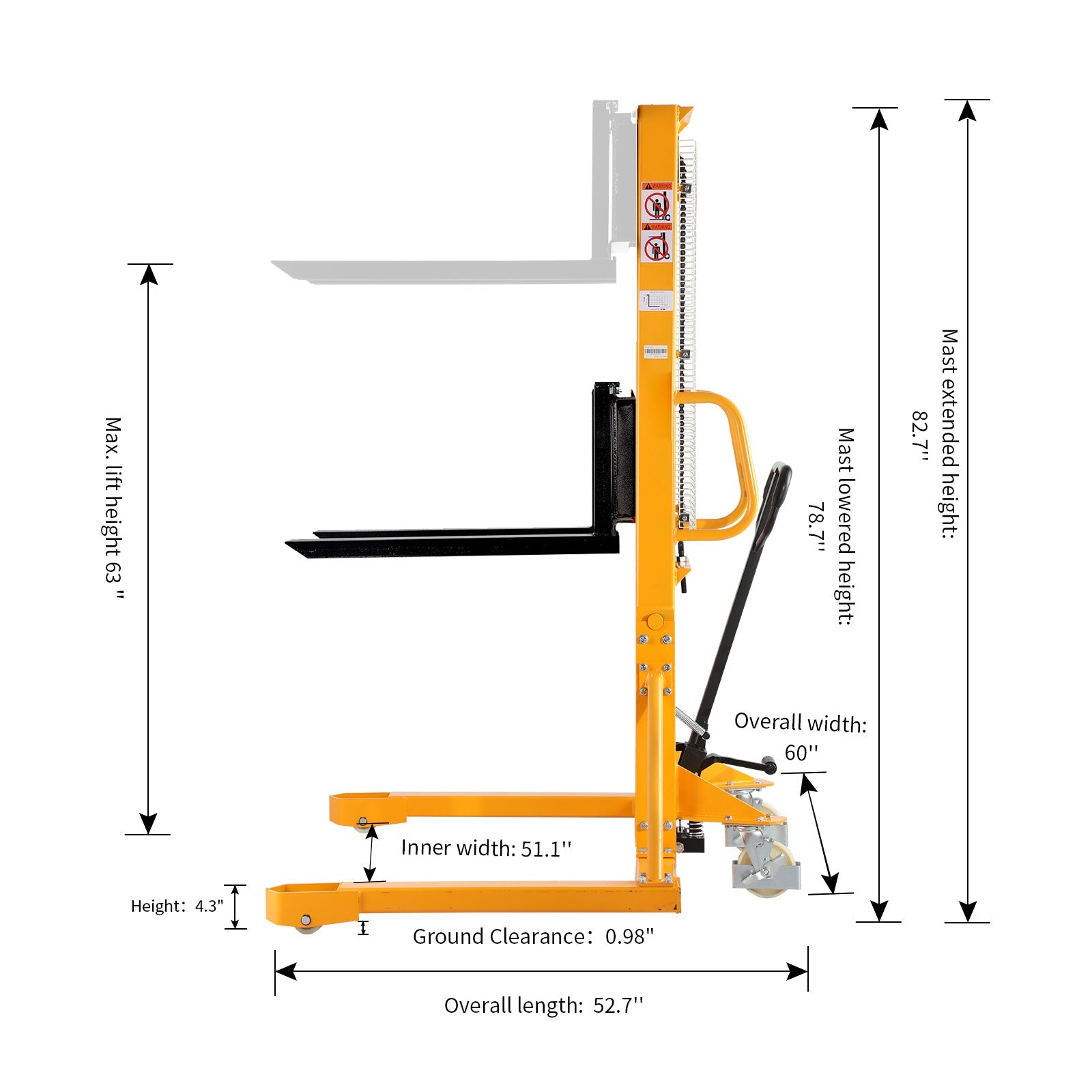

DIMENSIONS:
- Overall width: 60''
- Overall length: 52.7''
- Load center: 19.7''
- Recommended Aisle Width: 77.8"
- Turning radius: 47.2''
MAST:
- Lifting height: 63''
- Mast lowered height: 78.7''
- Mast extended height: 82.7''

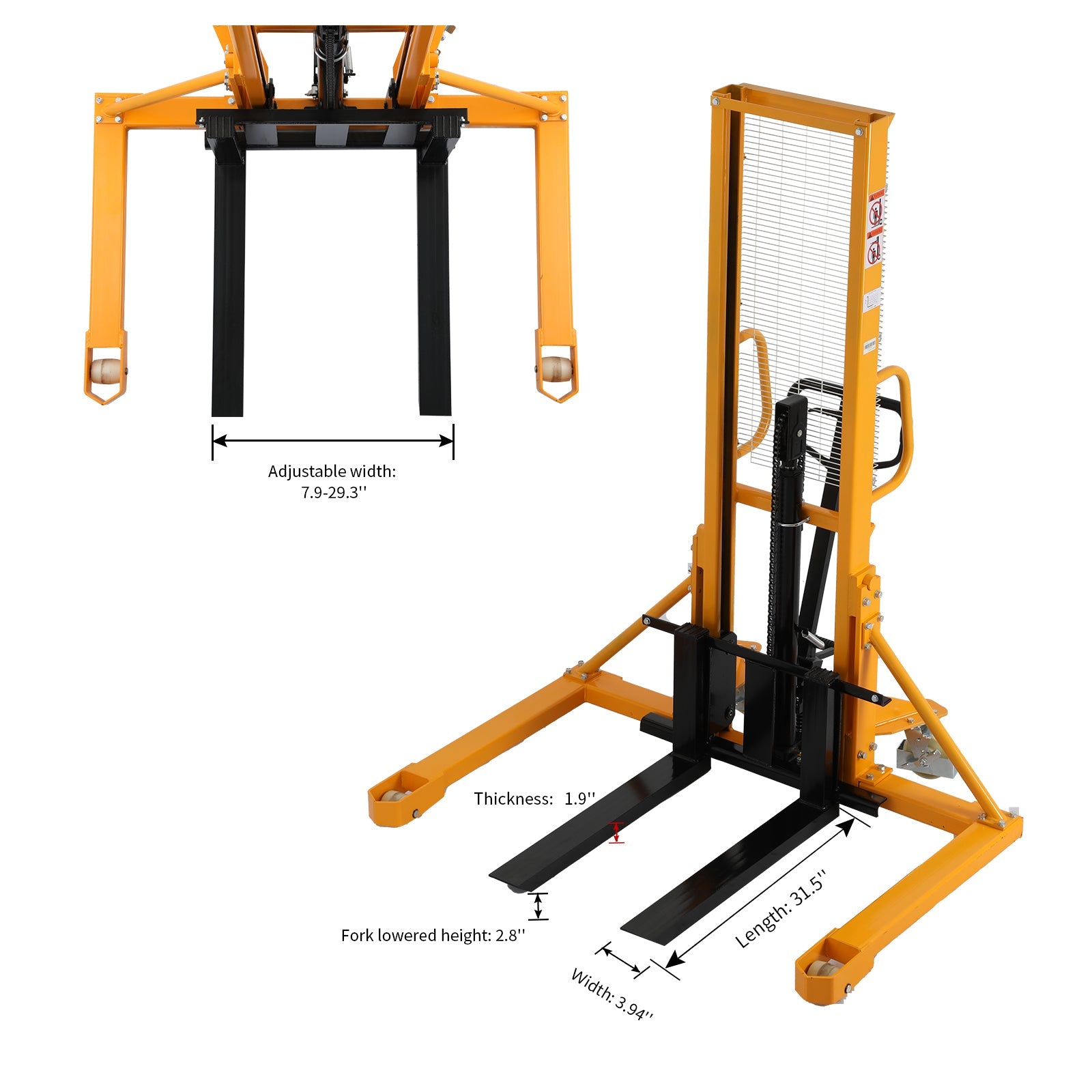

FORKS:
- Adjustable width: 7.9-29.3''
- Thickness: 1.9''
- Width: 3.94''
- Length: 31.5''
- Fork lowered height: 2.8''
STRADDLE LEGS:
- Inner width: 51.1''
- Height: 4.3''
FEATURES:
- Foot Operated Pump: Lift Height nearly 1'' per stroke
CLICK HERE :Assemble the staddle leg of Manual Stacker.
